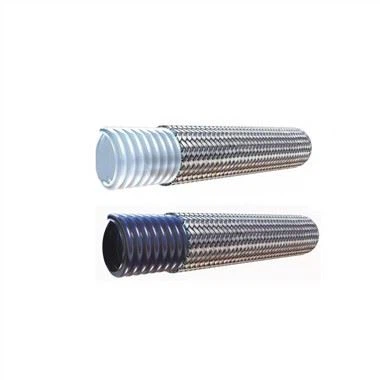

Ptfe Braided Ss Hose With Sarlink Cover

Product introduction:

Name: ptfe braided ss hose with sarlink cover

Inner tube: PTFE hose

Cover: Stainless steel braided

Working temperature: -60 °C to +260 °C

Features: Strong acid, strong alkali resistance, high temperature resistance

Application: Chemical industry, Industrial gas transport, Food industry, Machinery industry



Product Description:

1. Stainless steel metal hose is a kind of high quality flexible pipe in modern industrial pipeline. As it is all made of austenitic stainless steel, it ensures good softness of the hoseResistance to fatigue, high and low temperature, corrosion resistance and other characteristics.

2. The elastic characteristics of the corrugated pipe contour make it easy to absorb various kinematic deformation and cyclic load, especially in the pipeline system, it has the ability to compensate for large displacement, which is relatively long life compared with other hoses Life is much higher, so it has higher comprehensive economic benefits.



Specified:

● Heat and cold resistance

● Corrosion resistance

● Non-toxicity

● Extremely low permeability

● Light weight

● Flex fatigue resistance

● Ease of cleaning sanitizing



Best flexibility corrosion resistance stainless steel 304 braided PTFE lined corrugated Antistatic hose

Antistatic PTFE hose has a very wide temperature range (from -200 to +260 degrees Celsius). Basically, it has corrosion resistance to all chemicals except some fluoride and alkaline metal liquid. Excellent mechanical properties include anti-aging, especially for bending and swinging applications, excellent fire retardancy. (in accordance with astm-d635 and D470 test procedures, It is defined as flame-retardant material in the air, with excellent insulation characteristics (regardless of its frequency and temperature), extremely low water absorption, and a series of unique properties such as self-lubricating and non sticky, low friction coefficient Very good wear resistance; application: Seal / gasket, ring material, wear plate / seat electricity, insulation parts, anti-corrosion industry, mechanical parts, lining, oil and natural gas, petrochemical industry, chemical industry, instrument and equipment manufacturers, etc



Product parameters

No.	Specification	ID(mm)	OD(mm)	Thickness(mm)	Working Pressure(bar)	Burst Pressure(bar)
1	1/8	3.5	6.6	1	326	1007.76
2	3/16	4.8	8	0.85	247	740.52
3	1/4	6.4	9.2	0.85	214.2	666.06
4	5/16	8	11	0.85	191.76	598.74
5	3/8	9.7	12.8	0.85	188.7	567.12
6	1/2	12.7	15.9	1	156	470.22
7	5/8	16	19.2	1	129.54	389.64
8	3/4	19	22.7	1.2	79.56	274.38
9	7/8	22.2	26	1.2	61.2	198.9
10	1	25	29.3	1.5	40.8	156.06
11	2	50	55.6	2	30.6	122.4



FAQ

Q: Can you produce the hose with my own brand ?

A: Yes, we have been offering OEM service for 10 years.



Q: Can you send us a sample to test quality before ordering ?

A: Yes, we can provide sample by free but the freight and other charges is payed by the customers.



Q: Could we pay a visit to your factory ?

A: Yes, you are always welcome to visit our factory.



Q: Can you help us do the custom clearance ?

A: Yes, we can. We can help you find a professional custom clearance company to do it.



Q: Can we get the goods without your company name to export ?

A: Yes, we can. We are allowed to use your designated agent's name if you have one.



Q: Can you produce goods with special specification ?

A: First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible.
