Pvc Fire Hose
Available Sizes: Ranging from 13 mm up to 50 mm
Material: Made from Polyvinyl Chloride (PVC)

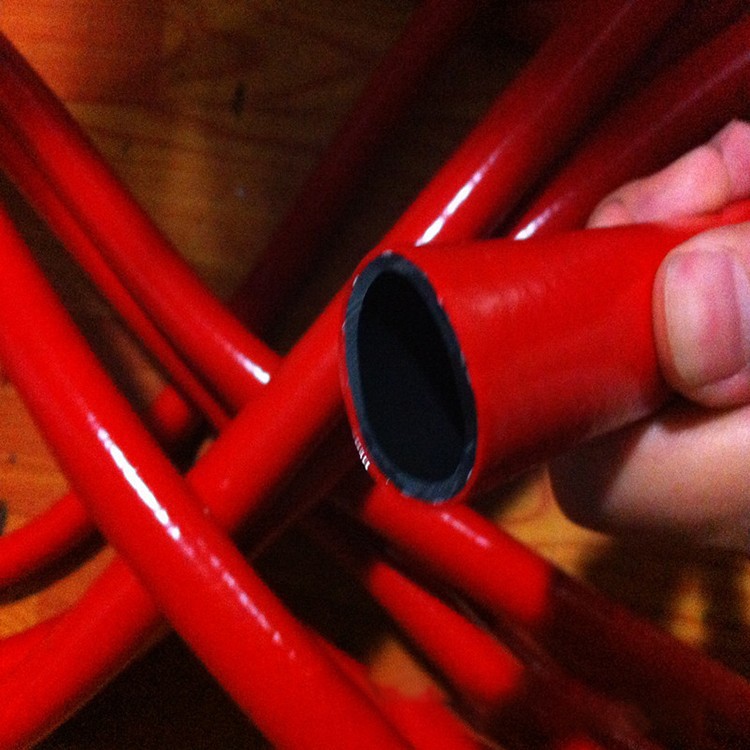

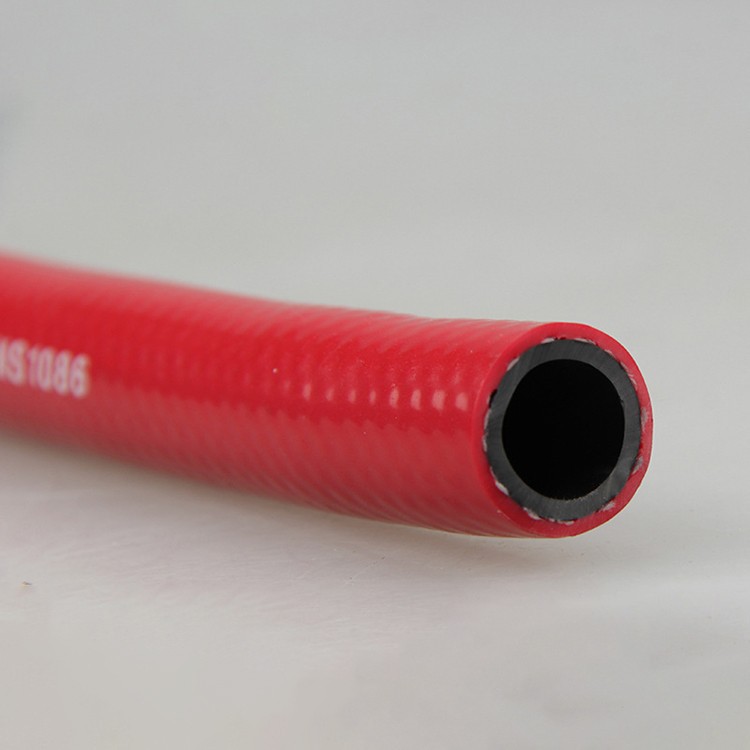

Features: Two layers construction, the inner layer is black and the outer layer is red
Application: For industrial use, oil and heat resistant
PVC Fire Hose is a special hose for water or other fire retardants such as foam transfer in fire-fighting industry, factories, and buildings for the main purpose of fire distinguishing.
PVC Fire Hose Application, Construction & Feature
Application
The hose suits for fixed fire reel installations as accessories of fire equipment in factories, public buildings, offices, and construction. It also suits for first aid, firefighting purposes.
Construction
Special PVC compound with high resistant polyester textile reinforcement. Abrasion and Weather resistant
Feature
• PVC fire hose has good quality modified PVC material, fire-resistance.
•High strength polyester yarn to ensure resistance to high water pressure.
• Smooth surface with different colors available. (Red color and black tubing in general)
Applications and Uses:
Fire Fighting Operations: Used by fire departments for extinguishing fires in residential, commercial, and industrial areas.
Emergency Response: Essential for emergency response teams in both urban and rural settings for quick fire suppression.
Industrial Safety: Employed in industries for fire prevention and control measures, especially in areas with high flammability risks.
Agricultural Use: Utilized in agricultural settings for irrigation and fire protection on farms and ranches.
Construction Sites: Provides crucial fire protection at construction sites where flammable materials and activities are prevalent.
Public Facilities: Installed in public buildings such as schools, hospitals, and malls to ensure fire safety and compliance with regulations.
Warehouse Management: Used in warehouses and storage facilities to manage fire risks and ensure safety.
Vehicle Fire Suppression: Integrated into fire trucks and emergency vehicles for on-the-spot fire control.
| Item Code | ID (inch) | ID (mm) | OD (mm) | W.P. (psi) | W.P. (bar) | B.P (psi) | B.P (bar) | Length (m) | weight (kg/roll) | volume (m3/roll) |
| HK-1920 | 3/4 | 19 | 25 | 225 | 15 | 8700 | 45 | 20 | 5.6 | 0.02 |
| HK-1925 | 3/4 | 19 | 25 | 225 | 15 | 8700 | 45 | 25 | 7 | 0.025 |
| HK-1930 | 3/4 | 19 | 25 | 225 | 15 | 8700 | 45 | 30 | 8.4 | 0.03 |
| HK-2520 | 1 | 25 | 32 | 174 | 12 | 522 | 36 | 20 | 8.5 | 0.038 |
| HK-2525 | 1 | 25 | 32 | 174 | 12 | 522 | 36 | 25 | 10.6 | 0.045 |
| HK-2530 | 1 | 25 | 32 | 174 | 12 | 522 | 36 | 30 | 12.7 | 0.055 |
| HK-3320 | 1-1/4 | 33 | 41.5 | 174 | 12 | 522 | 36 | 20 | 13.5 | 0.066 |
| HK-3325 | 1-1/4 | 33 | 41.5 | 174 | 12 | 522 | 36 | 25 | 16.9 | 0.083 |
| HK-3330 | 1-1/4 | 33 | 41.5 | 174 | 12 | 522 | 36 | 30 | 20.3 | 0.11 |
