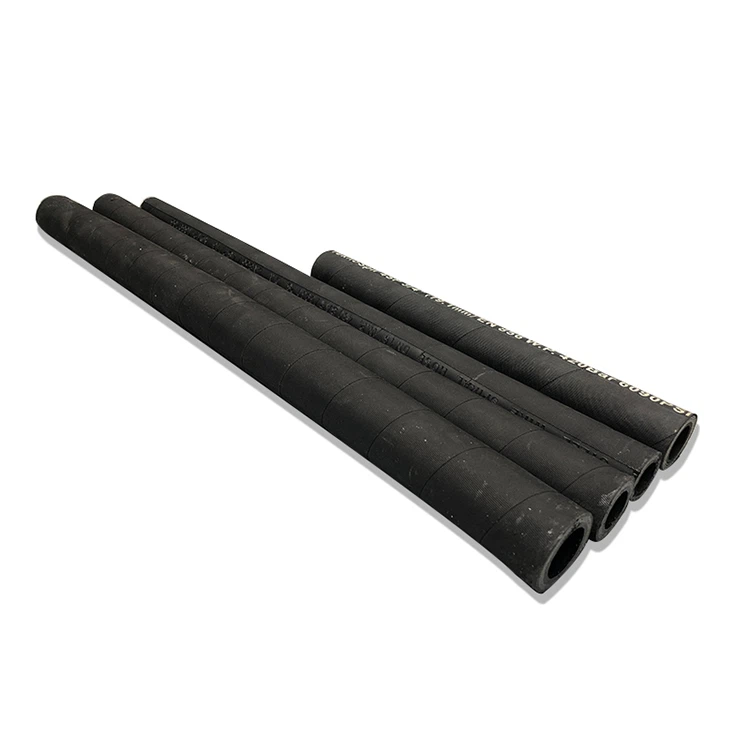

Custom Hydraulic Hoses
Cover: Weather Resistant Synthetic Rubber
Application: Transmiss Water, oil and so on
Feature: Wear Resistance
Product introduction:
Processing Service: Moulding, Cutting
Product name: custom hydraulic hoses
Keywords: High Pressure Hydraulic Rubber Hose
Cover: Weather Resistant Synthetic Rubber
Application: Transmiss Water, oil and so on
Feature: Wear Resistance
Working temperature: -40~+100°C
Product Description:
FEATURES
1. Be excellent in high-pressure resistance and impulse resistance.
2. Can be equipped with metal joints and combined into assemblies of various types
3. The rubber tube is made of synthetic rubber, whcih assures its excellent performance of oil resistance, high-temperature
resistance and aging resistance.
4. Avaiable in differet length of our wire braid Rubber hose that we can provide hundreds of meters of the rubber tube.
5. Excellent performance in weather-resistant and fatigue durable.
Product Usage:
The products are mainly used for mine hydraulic supports, oilfield mining, suitable for engineering construction, lifting and transportation, metallurgical forging, mining equipment, ships, injection molding machinery, agricultural machinery, various machine tools, and various industrial sectors mechanized and automated hydraulic systems. Pressure (higher pressure) and temperature petroleum-based (such as mineral oil, soluble oil, hydraulic oil, fuel, lubricating oil) and water-based liquids (such as emulsion, oil-water emulsion, water), etc. and liquid transmission, high The working pressure can be up to 50MPa.
Product parameters
|
SIZE |
ID |
OD |
W.P. |
P.P. |
B.P. |
W.T. |
|
|
mm |
Inch |
mm |
mm |
Mpa |
Kg/m |
||
|
5 |
3/16 |
4.6-5.4 |
15.1-16.7 |
34.5 |
69.0 |
138 |
0.37 |
|
6.3 |
1/4 |
6.1-6.9 |
16.7-18.3 |
34.5 |
69.0 |
138 |
0.42 |
|
8 |
5/16 |
7.7-8.5 |
18.3-19.9 |
29.3 |
58.6 |
117.2 |
0.51 |
|
10 |
3/8 |
9.3-10.1 |
20.6-22.2 |
27.6 |
55.2 |
110.4 |
0.60 |
|
12.5 |
1/2 |
12.3-13.5 |
23.8-25.4 |
24.1 |
48.2 |
96.4 |
0.74 |
|
16 |
5/8 |
15.5-16.7 |
27.0-28.6 |
18.9 |
37.8 |
75.6 |
0.86 |
|
19 |
3/4 |
18.6-19.8 |
31.0-32.6 |
15.5 |
31.0 |
62.0 |
1.04 |
|
25 |
1 |
25.0-26.4 |
38.5-40.9 |
13.8 |
27.6 |
55.2 |
1.42 |
|
31.5 |
11/4 |
31.4-33.0 |
49.2-52.4 |
11.2 |
22.4 |
44.8 |
2.23 |
|
38 |
11/2 |
37.7-39.3 |
55.6-58.8 |
8.6 |
17.2 |
34.4 |
2.74 |
|
51 |
2 |
50.4-52.0 |
68.2-71.4 |
7.8 |
15.6 |
31.2 |
3.50 |
FAQ
Q: Can you produce the hose with my own brand?
A: Yes, we have been offering OEM service for 10 years.
Q: Can you send us a sample to test quality before ordering?
A: Yes, we can provide sample by free but the freight and other charges is payed by the customers.
Q: Could we pay a visit to your factory?
A: Yes, you are always welcome to visit our factory.
Q: Can you help us do the custom clearance?
A: Yes, we can. We can help you find a professional custom clearance company to do it.
Q: Can we get the goods without your company name to export?
A: Yes, we can. We are allowed to use your designated agent’s name if you have one.
Q: Can you produce goods with special specification?
A: First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible.
