6 Wire Spiral Hose Hydraulic Hose Rubber Hose
video

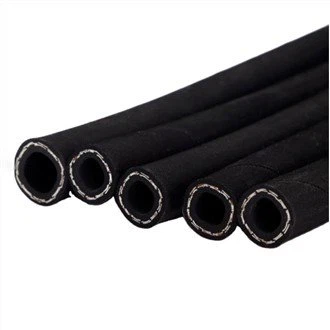

6 Wire Spiral Hose Hydraulic Hose Rubber Hose

NAME: 6 wire spiral hose hydraulic hose rubber hose CONTINUOUS SERVICE TEMPERATURE RANGE: -40°F / +250°F; -40°C / +121°C MAX OPERATING TEMPERATURE:257°F; 125°C TUBE: OIL RESISTANT SYNTHETIC RUBBER REINFORCEMENT: FOUR HIGH TENSILE STEEL SPIRALS (DN 19~31); SIX HIGH TENSILE STEEL SPIRALS (DN 38~51) COVER: ENVIRONMENT RESISTANT SYNTHETIC RUBBER APPLICABLE SPECS: SAE 100 R15 - ISO 3862-1 R15
Send Inquiry
Product Introduction

High Pressure Rubber Hose

A hydraulic hose is used anywhere in a hydraulic system requiring a flexible connection between two fluid ports. A hydraulic hose is a synthetic rubber tube surrounded by some sort of flexible strength enhancing winding, such as metal or fiber, and then covered in another rubber carcass


Our products are analyzed for quality assurance and specifications at many points of the manufacturing process to insure that we ship the very best finished products to our customers. In addition, we perform hydraulic pressure testing and impulse testing to ensure that our products perform to rated specifications.


To compliment our hose products, choose from a variety of accessories, such as steel, brass, and stainless steel hydraulic adapters and split flange kits. To enhance hose life and performance we have spring guards, nylon hose sleeving, and spiral-guard hose sleeving. These products are manufactured from the same sources as the largest hose manufacturing names at a significant price savings.

Product Specification
SAE 100R12
Part No.
SIZE
ID
OD
WP
BP
WEIGHT
inch
mm
mm
bar
bar
g/m
P06-R12
3/8"
9.5
20.2
280
1120
615
P08-R12
1/2"
12.7
23.8
280
1120
775
P10-R12
5/8"
16.0
27.4
280
1120
1060
P12-R12
3/4"
19.0
30.7
280
1120
1200
P16-R12
1"
25.4
38.0
280
1120
1820
P20-R12
1 1/4"
31.8
47.0
210
840
2550
P24-R12
1 1/2"
38.1
53.5
175
700
2980
P32-R12
2"
50.8
66.7
175
700
4170
SAE 100R13
Part No.
SIZE
ID
OD
WP
BP
WEIGHT
inch
mm
mm
bar
bar
g/m
P12-R13
3/4"
19.0
32.0
345
1380
1625
P16-R13
1"
25.4
38.7
345
1380
2065
P20-R13
1 1/4"
31.8
49.5
345
1380
3865
P24-R13
1 1/2"
38.1
57.3
345
1380
4845
P32-R13
2"
50.8
72.0
345
1380
6420
SAE 100R15
Part No.
SIZE
ID
OD
WP
BP
WEIGHT
inch
mm
mm
bar
bar
g/m
P06-R15
3/8"
9.5
21.4
420
1680
750
P08-R15
1/2"
12.7
24.6
420
1680
890
P10-R15
5/8"
16.0
28.2
420
1680
1225
P12-R15
3/4"
19.0
32.0
420
1680
1500
P16-R15
1"
25.4
37.5
420
1680
2065
P20-R15
1 1/4"
31.8
50.5
420
1680
3865
P24-R15
1 1/2"
38.1
58.0
420
1680
4845
P32-R15
2"
50.8
72.0
420
1680
6420
