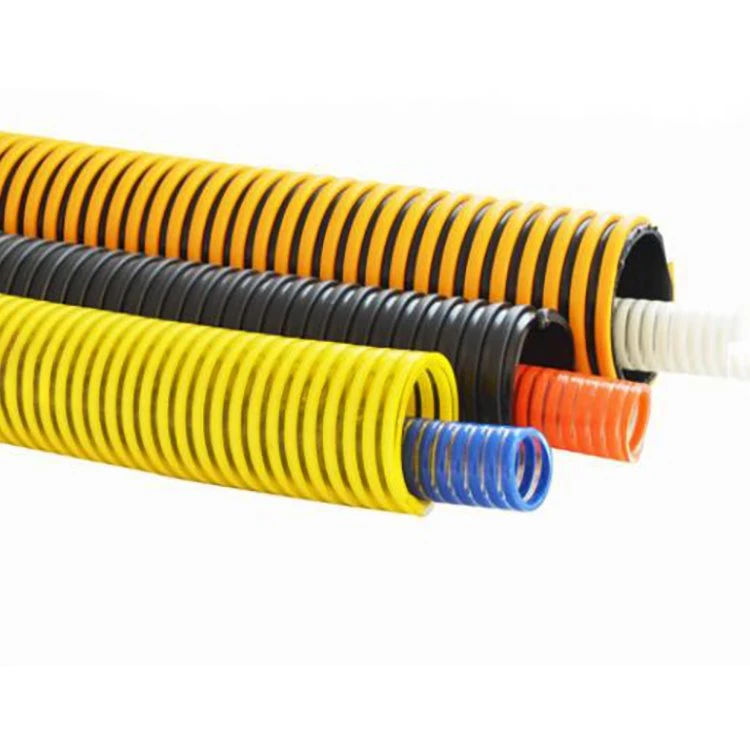

Pvc Corrugated Suction Hose Pipe
pvc corrugated suction hose-1
pvc corrugated suction hose-2
pvc corrugated suction hose-3
pvc corrugated suction hose-4

Pvc Corrugated Suction Hose Pipe

Material: high quality PVC plastic
Size: See our data sheet or be customized
Color: Various for choose or be customized
Working Pressure: 2 bar to 8bar

Send Inquiry

Product Introduction

Product introduction

Name: pvc corrugated suction hose

Material: high quality PVC plastic

Size: See our data sheet or be customized

Color: Various for choose or be customized

Working Pressure: 2 bar to 8bar

Packing: 30m each roll or as customized

Advantage

Soft and elastic

Soft tube body, more resistant to distortion than ordinary hose, flexible, easy to assemble.

Temperature resistance

Winter does not harden, cold resistance. Not easy to twist in summer, arbitrary bending, soft and durable.

Visibility is strong

Clear and transparent tube body, conveying liquid visibility, easy flow control.

The cross section is smooth

Can quickly transport liquid, improve work efficiency.

Characteristic

1.with high tensile strength polyester yarn jacket to handle both suction and higher pressure discharge applications.

2.Transparent Construction Allows for visual confirmation of material flow.

3.Rigid helix design protects hose from cover wear, Easy-to-handle.

Product parameters

Inner Diameter		Outer Diameter		Weight	W.P.(at 23℃)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
3/4	19	0.984	25	0.28	8	120	50	150
1	25	1.221	31	0.35	8	120	50	150
1-1/4	32	1.496	38	0.40	7	100	50	150
1-1/2	38	1.811	46	0.65	7	100	50	150
2	51	2.362	60	1.05	6	90	50	150
2-1/2	64	2.913	74	1.30	6	90	30	90
3	76	3.386	86	1.70	5	75	30	90
4	102	4.488	114	3.00	5	75	30	90
5	127	5.512	140	3.60	4	60	30	90
6	153	6.614	168	5.50	4	60	20	60
8	203	8.622	219	7.00	3	45	10	30
10	254	10.787	274	12.00	2	30	10	30
12	305	12.953	329	18.00	2	30	10	30

Usage

Very ideally for conveying water,oil,and powder, abrasive, mineral sands, gravel, cement, chips, shaving, constructions PVC flexible suction hose is good subsititute for rubber and metal hose in most application.

FAQ

Q: How can we guarantee quality?

A: Always a pre-production sample before mass production;Always final Inspection before shipment.

Q: What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q: Could you calculate the shipping cost for me?

A: Of course, we honored to do that! Before freight, please well let us know which seaport or airport near your place.

Q: Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q: Can I place sample order first?

A: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
