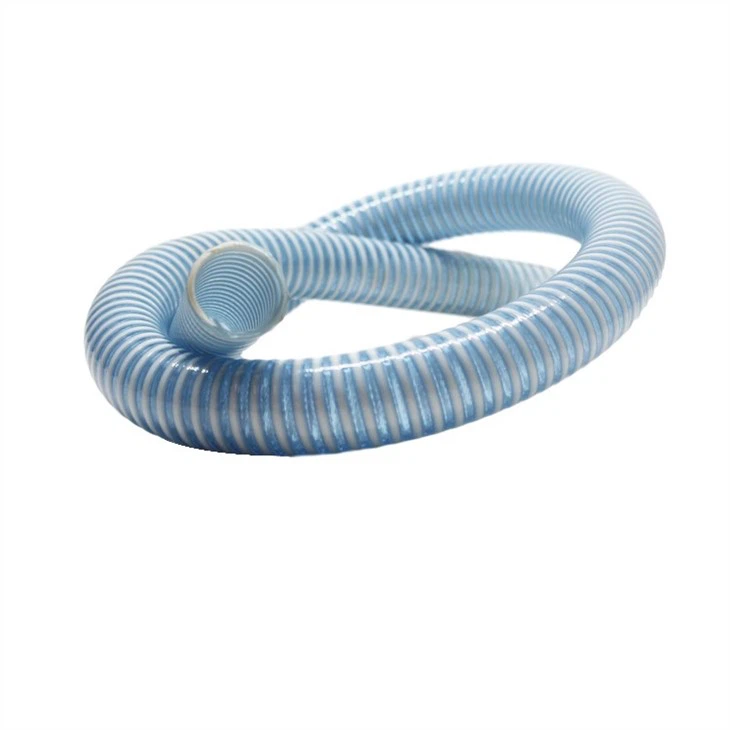

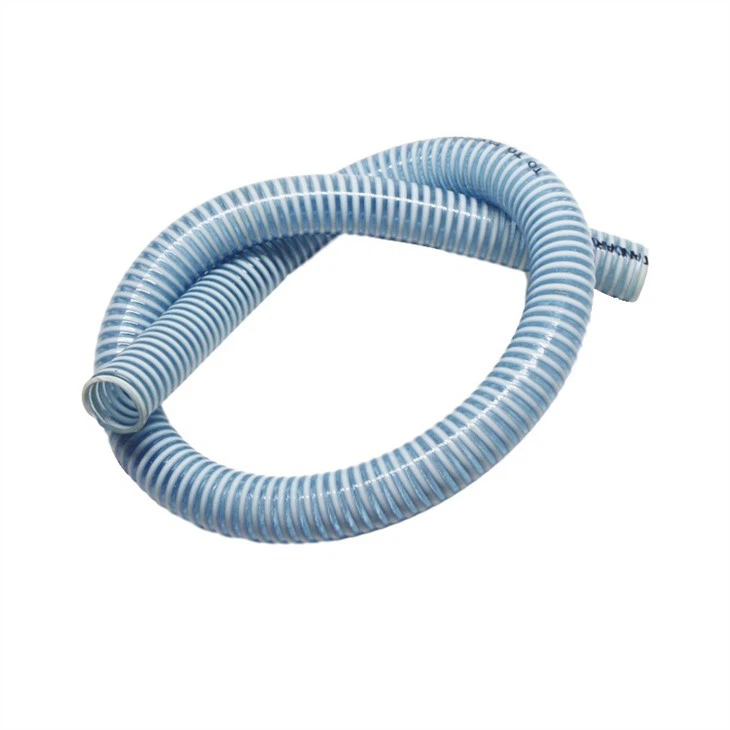

3 Inch Flexible PVC Spiral Water Pump Suction Hose

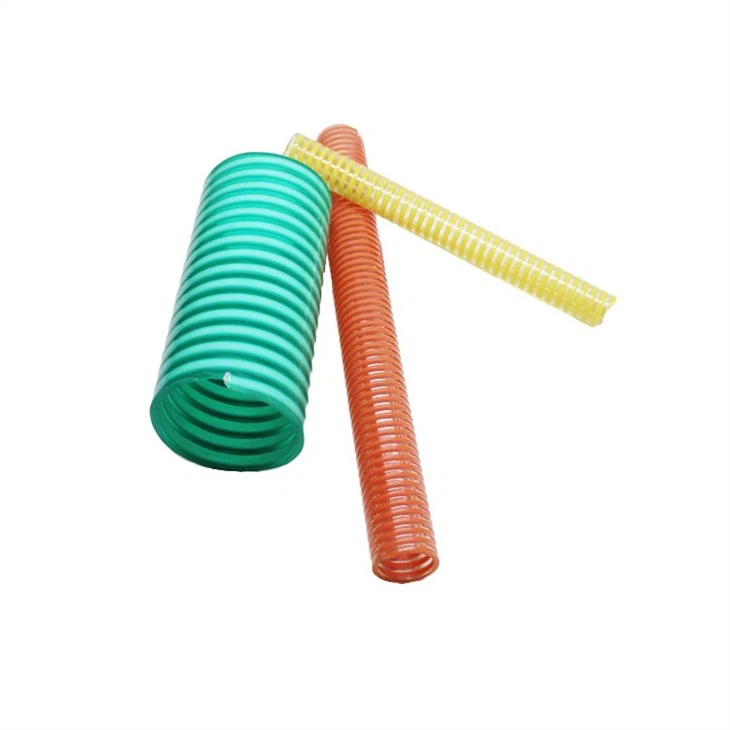

Color: Green red blue and etc
Temperature range: -5~65℃
Couping: Camlock couping amd clamps are available
Reiforcement: Rigid pvc helix
Wall: High quality plasticized pvc
Sample: Available
OEM: Accpet
Product Description:
Characteristic:
1. Economical & flexible
2. Abrasion & chemical resistant
3. Impact & crush resistant
4. Excellent bending radius
5. Constructed with rigid spiral helix reinforcement
6. Smooth inner construction for unrestricted flow of materials
7. Economical, flexible & lightweight for easy transport
Feature
1. Thinner PVC suction hose is used for conveying water in family yard, garden and farm irrigation.
2. Thicker PVC suction hose is used for conveying concrete, powder, oil and water for factory, mine, construction site, water
conservancy facilities, agriculture. PVC suction hose is substitute product of rubber and steel pipe.
3. PVC suction is colorful flexible, and soft, can resist UV.
4. Small bending radius.
Product parameters
INCH | ID | Length | W.P | Weight |
MM | Bar | kg/m | ||
3/4" | 19 | 30/50 | 4 | 0.185 |
3/4" | 20 | 30/50 | 4 | 0.195 |
1" | 25 | 30/50 | 3.5 | 0.23 |
1-1/4" | 32 | 30/50 | 3 | 0.29 |
1-1/2" | 38 | 30/50 | 3 | 0.44 |
1-3/4" | 45 | 30/50 | 2.5 | 0.57 |
2" | 51 | 30/50 | 2.5 | 0.69 |
2-1/2" | 63 | 30/50 | 2.5 | 0.89 |
2-3/4" | 70 | 30/50 | 2 | 1.02 |
3" | 76 | 30/50 | 2 | 1.12 |
3-1/2" | 90 | 30/50 | 1.5 | 1.5 |
4" | 102 | 30/50 | 1.5 | 1.7 |
Applications: Delivery and light suction of water Conveyance of waste,light acids,slurry,chemicals,and other waste matter. Delivery of saline water,light acids,alkaline and other chemicals except solvents Suitable for the horticulture and marine industries,also used as portable water supply. Ventilation and air condition. Dust powder air suction in buildings,factories,mines etc. |  |
FAQ
Q: Are you manufacturer or trading company?
A: We are a hose manufacturer.
Q: Can you supply products with private label?
A: Yes, we are an OEM manufacturer, your private label or customized products are accepted.
Q: Can your company provide certificate for your products or can you accept some test for your product or your company?
A: Yes, we had passed a lot of test for our product and factory and factory.
Q: What about your production capicity?
A: We are an OEM factory, we have a number of production lines and first-class equipment and machines to ensure that our mass production.
Hot Tags: 3 inch flexible PVC spiral water pump suction hose, China, suppliers, manufacturers, factory, low price, PVC Braided Reinforced Hose, PVC Wire Steel Suction Hose, PVC Suction Pipe Hose, PVC Fiber Suction Hose, 4 Inch Flexible PVC Suction Hose Pipe, PVC Green Suction Hose
