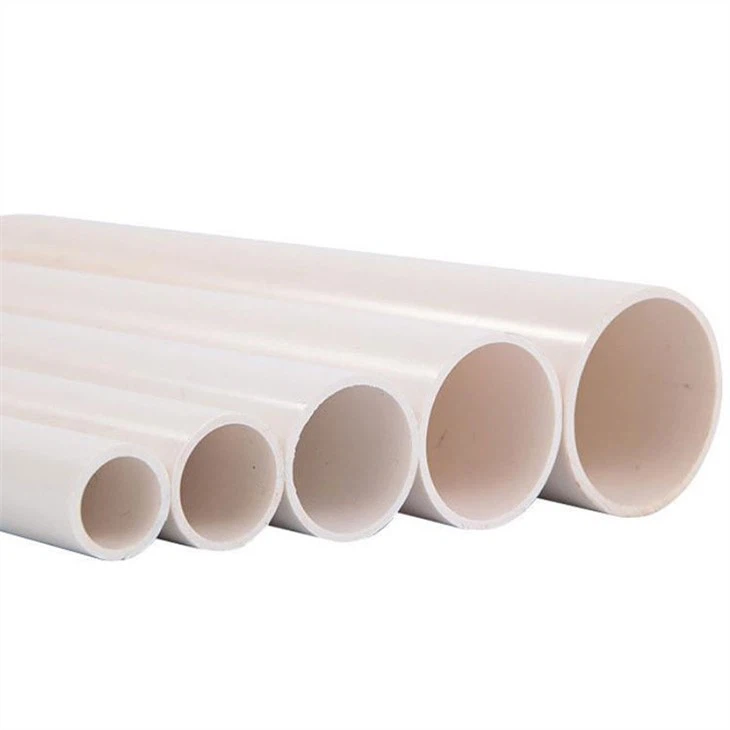

Pvc Pipe For Water Well
Model Number: 160mm 110mm 200mm 315mm
Specification: custom
Length: custom
Thickness: 2mm—100mm
Processing Service: Moulding, Cutting
Product Description:
Advantages
Light weight, convenient to carrying and loading
Good corrosion resistance and chemical-proof
Small liquid resistance
Large mechanical strength
Excellent electrical insulation
No impact on water quality
Good water-tightness
Long life-spans
Low cost
1. Corrosion resistance to wide range of corrosive media.
2. Non-toxic, safe and hyglene, ideal for use in environment friendly water supply-drainage pipeline and gas pipeline.
3. Good sealing. Electric hot melting is used for jointing the pipes and pipe fttings are fused together, forming a no-leaking
joint.
4. High resistance to underground movement and loading at pipe end. Stress releasing characteristics of polyethylene can effectively release the intemal stress of the pipe through deformation and thus the pipe has sufficient resistance to pipe end stress and no expensive way of anchoring is necessary for pipe laying.
5. Good resistance to rapid crack propagation(RCP) and slow crack growing(SCG).
6. Good hydaulic property. Because the pipe's inner wall is smooth, resistance to medium flow is low and capacity of delivery is
higher than conventional pipe by 30%.
7. Good toughness and possible seismic resistance
8. Good adimensional stability and impact resistance.
9. Easiness in laying. If buried, the pipe can withstand abrupt impact load caused by land subsidence, land sliding, vehicle, etc.
with no need to have concrete foundation, and thus pipe installation is quick construction cost is lessened.10. Long service life:
Service life for safety use is 50 years.
11. Wide application range. The pipe can be widely used in municipal utilities (gas delivery and distribution pipelines, buried water supply-drainage pipeline,pharmacy,metallurgy,mining,etc.as well as in agricultural irrigation system).
Product parameters
| OD | DN | INCH | PN0.8MPa | 16PN1.25MPa | PN1.6MPa | PN2.0MPa |
Thicknes | Thicknes | Thicknes | Thicknes | |||
(mm) | (mm) | (mm) | (mm) | |||
20 | DN15 | 1/2" | 2 | |||
25 | DN20 | 3/4" | 2 | 2.3 | ||
32 | DN25 | 1" | 2.4 | 2.9 | ||
40 | DN32 | 1 1/4" | 2 | 3 | 3.7 | |
50 | DN40 | 1 1/2" | 2 | 2.4 | 3.7 | 4.6 |
63 | DN50 | 2" | 2.5 | 3 | 4.7 | 5.8 |
75 | DN65 | 2 1/2" | 2.9 | 3.6 | 5.6 | 6.8 |
90 | DN80 | 3" | 3.5 | 4.3 | 6.7 | 8.2 |
110 | DN100 | 4" | 4.2 | 5.3 | 8.1 | 10 |
125 | 4.8 | 6 | 9.2 | 11.4 | ||
140 | DN125 | 5" | 5.4 | 6.7 | 10.3 | 12.7 |
160 | DN150 | 6" | 6.2 | 7.7 | 11.8 | 14.6 |
180 | 6.9 | 8.6 | 13.3 | 16.4 | ||
200 | 7.7 | 9.6 | 14.7 | 18.2 | ||
225 | DN200 | 8" | 8.6 | 10.8 | 16.6 | |
250 | 9.6 | 11.9 | 18.4 | |||
280 | DN250 | 10" | 10.7 | 13.4 | 20.6 | |
315 | DN300 | 12" | 12.1 | 15 | 23.2 | |
355 | DN350 | 14" | 13.6 | 16.9 | 26.1 | |
400 | DN400 | 16" | 15.3 | 19.1 | 29.4 |
Application
Water supply engineering
Electrical engineering
Construction works
Sewerage system
Telecommunications engineering
Natural gas engineering
Chemical plant
Electroplate plant
Agricultural garden
Freeway engineering
Golf course engineering
FAQ
Q: Are you factory or trading company?
A: We are manufacturer.
Q: Do you accept customized the products?
A: Answer: Yes, we welcome to custmized the goods. It may need customer offer the sample or just size and picture depends on the degree of difficulty.
Q: How can I get a sample to check the quality?
A: Please kindly provide the details of the sample you like. Then we’ll produce the sample as your request. You can send us a sample, we can produce a sample according to the original sample.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: Can you do the designs for us?
A: Yes.We have a professional team having much experience in designingand manufacturing.Just let us know your ideas,we will draw the finished filesfor your confirmation.
Q: What format of the file do you need if I want myown design?
A: You can provide JPG,Al,or PDF etc,Our professional designer will drawartwork for mould or printing screen for you.
