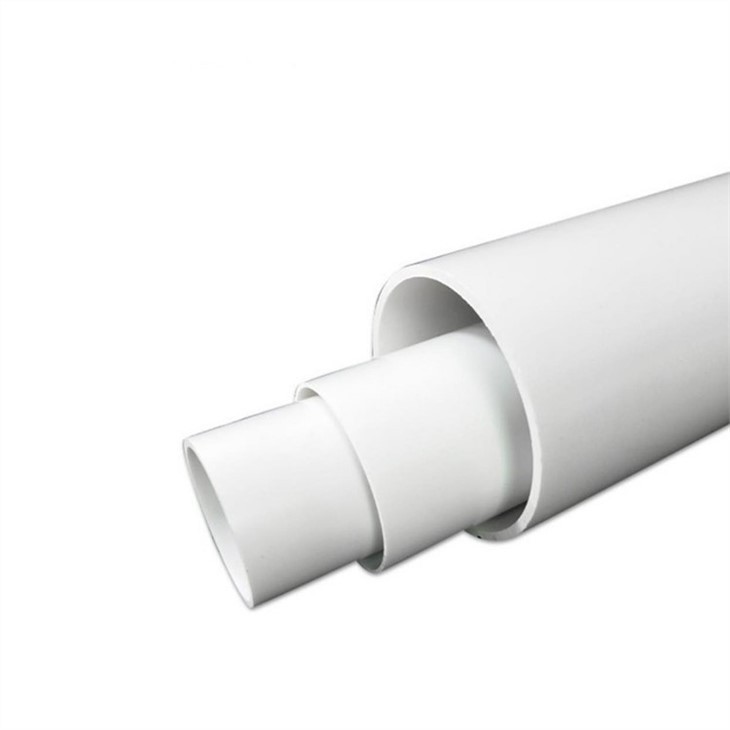

4 Foot Diameter Plastic Pipe
UPVC Size range: 16mm -1200mm
Customize service : Diameter , color and logo all can be customized
Delivery time : Usually 3-7workings days
Standard length: 4m/6m or customized
Connection method: Glue ,UPVC fittings ,rubber ring,socket
Product Description:
Advantage
Thickness: With appropriate temperature and accurate molds machinery technology, the thickness,size,shape can be precisely controlled.
Toughness: If you bend ,can not break(90 and 180 degree cold bend).
Hardness: Under pressure ability, high impact resistance.
Fire-resistance: Flame-retardant pvc resin,highly combustion-retardant,quickly self-extinguishing.
Corrosion resistance: Moisture, acid and alkali resistance, assuring a lower maintenance cost and a longer performance life.
Non-conductive: Excellent electricity insulation, which resist 25kv voltage , assuring a safe system.
Installation: Easy to open and close ,convenient push-pull,installed with solvent cementing and threading joinin.
Save cost: Can save much more installation expense than metal pipe and fittings because of light weight and convenient for installation.
4 foot diameter plastic pipe
1. Municipal Water piping engineering (including indoor and outdoor municipal water pipe of water supply), because UPVC plastic pipe with acid and alkali resistance, corrosion resistance, rust, scale, water quality protection, prevent secondary pollution,strongly advocated in the production of environmentally friendly products today, as a kind of ideal "green building materials" to protect human health, has been widely applied by China and the world.
2. Piping project of water-saving irrigation. Compared with ordinary irrigation, the application of UPVC spray drop irrigation system can save 50%-70% water, save the amount of fertilizer and pesticide, and increase crop yield by 30%-80%.
3.UPVC plastic pipe has excellent insulation ability, but also widely used in telecommunication cable conduit.
4.UPVC plastic pipe with acid and alkali resistance, corrosion resistance, many chemical plants used for infusion piping. It is also used in well drilling engineering, pharmaceutical piping engineering, mineral salt water conveying piping engineering, electrical piping engineering, etc.
Product parameters
OD DN | 0.6MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa | 2.0MPa | 2.5MPa |
Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
20 | 2 | 2.3 | |||||
25 | 2 | 2.3 | 2.8 | ||||
32 | 2 | 2.4 | 2.9 | 3.6 | |||
40 | 2 | 2.4 | 3 | 3.7 | 4.5 | ||
50 | 2 | 2.4 | 3 | 3.7 | 4.6 | 5.6 | |
63 | 2 | 2.5 | 3 | 3.8 | 4.7 | 5.8 | 7.1 |
75 | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.9 | 8.4 |
90 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 |
110 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
125 | 3.1 | 3.9 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
140 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
160 | 4 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
180 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
200 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
225 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 | |
250 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 | |
280 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 | |
315 | 7.7 | 9.7 | 12.1 | 15 | 18.7 | 23.2 | |
355 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | |
400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | |
450 | 11 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | |
500 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | |
560 | 13.7 | 17.2 | 21.4 | 26.7 | |||
630 | 15.4 | 19.3 | 24.1 | 30 | |||
710 | 17.4 | 21.8 | 27.2 | ||||
800 | 19.6 | 24.5 | 30.6 | ||||
900 | 22 | 27.6 | |||||
1000 | 24.5 | 30.6 |
Application: 1.PVC Pipes uses in pressure water / potable water network 2.Sewage networks are an area of PVC pipes usage 3.PVC Pipes used in canalisation projects 4.PVC Pipes uses as cable protection pipes, 5.An area also of PVC Pipe is uses for industrial area 6.PVC Pipe can be uses for inbuilding projects 7.PVC Pipes uses for sewer lines 8.PVC pipes preferred also in drainage lines |  |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: how can we guarantee quality?
A: Always a pre-production sample before mass production;Always final Inspection before shipment;
Q: Could you put our logo on the packing?
A: Yes, it is easy to print your logo on the packing
Q: Could you offer us samples?
A: Yes, generally, free sample for 1~2pcs.
Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
