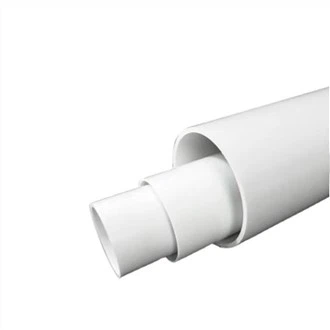

Hard 48 Inch Diameter Pvc Pipe
Size: 1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3",4"
Colour: Grey,white, blue, green, customized
Craftsmanship: Injection
Material: PVC,CPVC,Plastic
Pressure: Medium Pressure
Connection: Socket
OEM: Accept
Product Description:
Main Features:
1. mpact strength, resistant to compression and impact, suitable to be buried in concrete.
2. Non-conductive, good insulation, able to resist 25KV voltage, assuring a safe system.
3. Fire resistance, with self-extinguishing function.
4. Corrosion Resistance, resistant to acids, bases and salts, assuring a lower maintenance cost and a longer performance life.
5. Smooth surface, small friction and high flow capacity to ensure the cables go through smoothly.
Easy Installation, light weight, easy to cut, transport, bent and handle, easy connecting by solvent cement and threading joining without leakage.
Specification available, customized size also acceptable
Advantage:
1.Light weight ,conveniently to be transported and handled.
2.High pressure resistance
3.Hige temprature resistance.
4.Corrosion resistance. .
5.Good Sound insulation.
6.Good heat preservation.
7.Hygienic, harmless and potable water installations.
8. Recyclable,environment friendly.
9. Healthy and non-toxic, bacterial neutral, conforming to drinking water standards.
10. Low construction expense due to easy and reliable installation.
11. Suitable for both exposed and hidden installation.
12. Long serviceable life of at least 50 years under the normal conditions after testing
Product parameters
| OD DN | 0.6MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa | 2.0MPa | 2.5MPa |
Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
20 | 2 | 2.3 | |||||
25 | 2 | 2.3 | 2.8 | ||||
32 | 2 | 2.4 | 2.9 | 3.6 | |||
40 | 2 | 2.4 | 3 | 3.7 | 4.5 | ||
50 | 2 | 2.4 | 3 | 3.7 | 4.6 | 5.6 | |
63 | 2 | 2.5 | 3 | 3.8 | 4.7 | 5.8 | 7.1 |
75 | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.9 | 8.4 |
90 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 |
110 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
125 | 3.1 | 3.9 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
140 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
160 | 4 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
180 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
200 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
225 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 | |
250 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 | |
280 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 | |
315 | 7.7 | 9.7 | 12.1 | 15 | 18.7 | 23.2 | |
355 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | |
400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | |
450 | 11 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | |
500 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | |
560 | 13.7 | 17.2 | 21.4 | 26.7 | |||
630 | 15.4 | 19.3 | 24.1 | 30 | |||
710 | 17.4 | 21.8 | 27.2 | ||||
800 | 19.6 | 24.5 | 30.6 | ||||
900 | 22 | 27.6 | |||||
1000 | 24.5 | 30.6 |
Our Advantages:
Machinery: More than 60 advanced Extrusion machine for production of PVC duct, pipes, PVC-U drainage pipe line. and 80 Injectionmachine with max 500T for pipe fittings.
Experience: Over 30 years of experience in Thermoplastic Extrusion and Injection, such as running temperature control and continuously formula optimization.
Quality Assurance: 24-hour Rigorous QC Team which is in line with ISO 9001 Certification.
Large-scaled Mould Workshop: with 4 senior mould designers and a team of experienced mould manufacturing technicians
International Projects: Supply building and irrigation Projects in Asia, Africa, Middle East, Russia and other countries
FAQ
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final Inspection before shipment.
Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: Could you calculate the shipping cost for me?
A: Of course, we honored to do that! Before freight, please well let us know which seaport or airport near your place.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Can I place sample order first?
A: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
