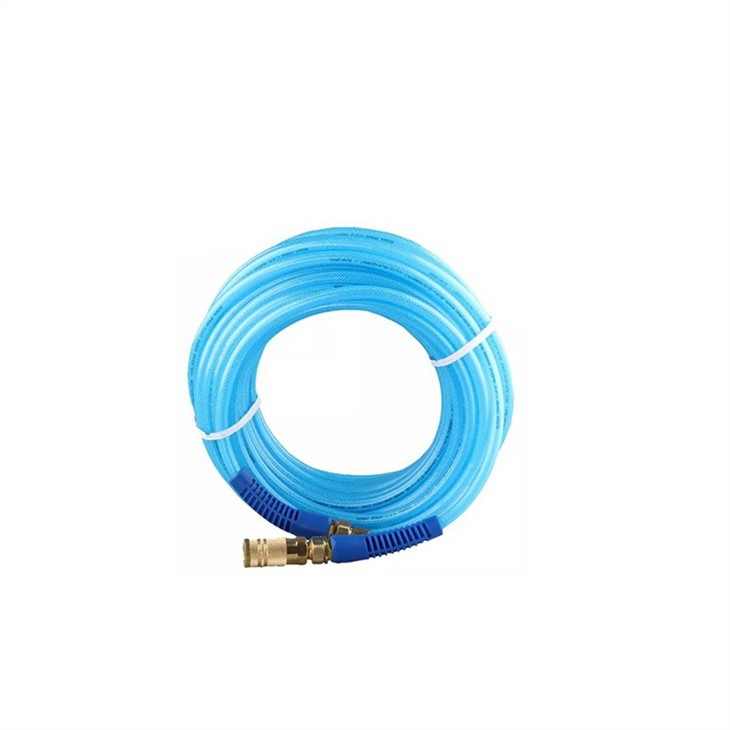

Pu Flexible Air Hose

Product introduction:

Name: pu flexible air hose

Material: Polyester Polyurethane

Hardness: 95A-98A

Fluid Admitted: Air/Gas/Water/Fluids

Temperature: -20℃ - +80℃



Features:

Excellent pressure resistance, weather resistance, corrosion resistance and great flexibility



Application: Industrial automation, pneumatic tools, tube for water and fluids, vacuum tubes, protective sleeve for metal and electronic products.



Product Description:

PU Polyurethane Braided Hose Advantages

Polyurethane braidedhoses (also called PU braided hoses) are particularly abrasion-resistant and durable plastic hoses. Reinforced Polyurethane Braided Hose is an Ester based polyurethane tubing which has outstanding characteristics when compared with other pneumatic tubing. PU braided hoses is extremely flexible and offers excellent bend capabilities and excellent abrasion resistance, making it ideal for pneumatic control or robotic systems.

Polyurethane Tubing is suited for use with push in fittings; compression fittings; quick-fit fittings and hose tails. Polyurethane braided hose offers increased flexibility, resistance to kinking and a broad temperature range.

PU braided hoses is resistant to many chemicals, gases and oil .

It is not suitable for use high humidity environments.Polyurethane combines the best properties of both plastic and rubber. It offers abrasion and tear resistance, high tensile and elongation values, and low compression set. Polyurethane is naturally flexible and exhibits virtually unlimited flexural abilities.Combining good chemical resistance with excellent weathering characteristics sets polyurethane apart from most other thermoplastics. It has exceptional resistance to most gasolines, oils, kerosene, and other petroleum-based chemicals, making PU tubing and hose/ PUR tubing and hose.



Characteristic:

Has excellent flexibility, the bevelling radius is small;

Good anti-knocking property; The nature is light;

The operating temperature and the workingpressure scope is wide;

Has the excellent chemical properties, the pressure loss is minimum;

Degree of hardness is constant, the service life is long;

Non-toxic, tasteless;

Custom-made color is doable, easy pipeline recognition, Confore to the ROHS environmental protection requirement.



Application:

The flexible PU hose is used for industry robots andpneumatic tools, assembly plant barometric tool, and duct with pressure.

Transport water and other liquid.Vehicles service and house painting!



Product parameters

Item Code		I.D	O.D	W.P.	B.P.	Weight	Bending radius	L
		mm	mm	bar	bar	kg/reel	mm	m/roll
METRIC SYSTEM	PU2030	2	3	10	32	1.4	8	200
	PU2540	2.5	4	10	32	2.3	10	200
	PU3050	3	5	10	32	3.6	8	200
	PU4060	4	6	8	24	4.3	15	200
	PU5080	5	8	10	32	4.2	20	100
	PU5580	5.5	8	8	24	3.7	20	100
	PU6510	6.5	10	8	24	6.1	25	100
	PU8012	8	12	8	24	8.2	35	100
	PU1014	10	14	8	24	9.4	45	100
	PU1216	12	16	8	24	11.3	70	100
	PU1316	13	16	6	18	8.9	80	100
BRITISH SYSTEM	PU2032	2	3.2	10	32	1.6	8	200
	PU2540	2.5	4	10	32	2.3	10	200
	PU4664	4.6	6.4	8	24	4.2	15	200
	PU5080	5	8	10	32	4.2	20	100
	PU6596	6.5	9.6	8	24	5.1	25	100
	PU96126	9.6	12.6	8	24	6.7	35	100



FAQ

Q: Can you produce the hose with my own brand?

A: Yes, we have been offering OEM service for 10 years.



Q: Can you send us a sample to test quality before ordering?

A: Yes, we can provide sample by free but the freight and other charges is payed by the customers.



Q: Could we pay a visit to your factory?

A: Yes, you are always welcome to visit our factory.



Q: Can you help us do the custom clearance?

A: Yes, we can. We can help you find a professional custom clearance company to do it.



Q: Can we get the goods without your company name to export?

A: Yes, we can. We are allowed to use your designated agent' s name if you have one.



Q: Can you produce goods with special specification?

A: First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible.
