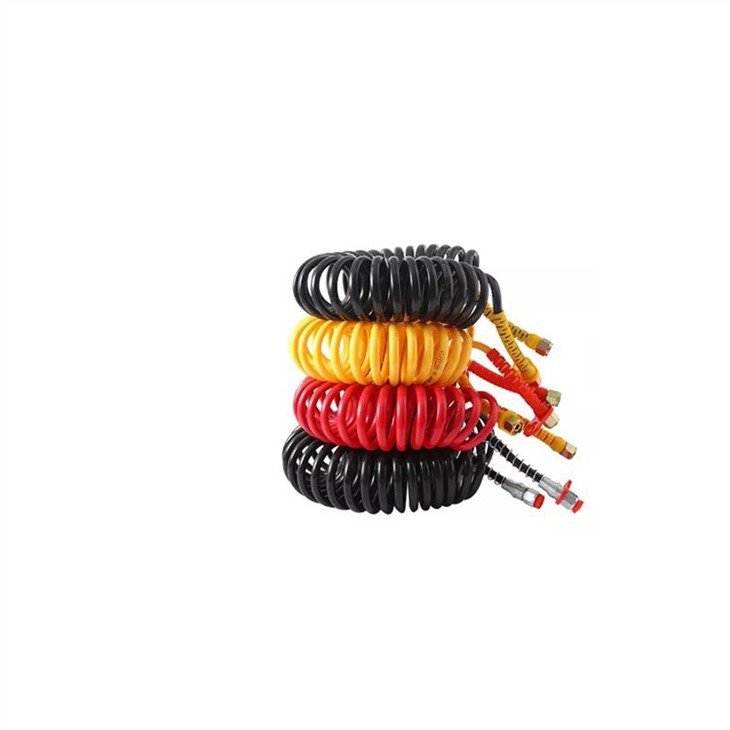

Nylon Pu Pa Flexible Spiral Coil

Product introduction:

NAME: nylon pu pa flexible spiral coil

Continuous Service Temperature Range: -40°F / +212°F; -40°C / +100°C

Insert: Shf Type

Tube: Oil Resistant Thermoplastic Elastomer

Reinforcement: One Polyester Braids

Cover: Thermoplastic Elastomer With High Ozone And Abrasion Resistance

Max Operating Temperature: 212°F 100°C For Oil, 149°F 65°C For Air, Water And Water Based Fluids

Applicable Specs: En 855 R7, Sae 100r7



Product Description:

Flexible, Lightweight PU Hose recoil hose is constructed with the super-flexible polyurethane (PU) whose soft finish is less likely to scratch surfaces. It also features anti-kink, abrasion, oil, grease resistant, more durable and lightweight than nylon.

Due to very good cold weather flexibility, polyurethane hose is perfect for year round use in temperatures as low as -20 degrees F.It delivers up to 120 PSI for maximum working pressure.



Features:

The ester-based PU coiling tube, possess all the characteristics of common PU tube, more featuring with excellent flexibility and excelling in restoring force. Easy using and flexible for movable parts.

1. Non-toxic, tasteless, long service life.

2. Excellent flexibility, the beveling radius is small.

3. The color and specification can be customer-tailored.

4. Excellent chemical property, pressure loss is small.

5. Degree of hardness is stable, good antiknock characteristic.

6. Excellent performance of resistance against high-pressure, vibration, corrosion, wear, weather and bending.

7. High precision of inside and outside diameter sizes controllable, suitable for various kind of fittings

8. Light weight, easy and flexible use and convenient for pipe arrangement. The tube is apply to various Pneumatic Tools, pneumatic automated machines, air compressor and connection pneumatic assembly etc, can be used widely in the industry, decoration industry, and pneumatic suitable pipelines.



Application:

used for air brake, automated machinery, coating machinery, all kinds of pneumatic tools, pneumatic & hydraulic machinery, hose reels, drums, telescopic spring reel, other auto industry pneumatic tools, Vehicle maintenance and metal products, construction and various pneumatic tools. Polyether based PU tube is hydrolysis-resistant, anti-bacterial & anti-fungous, and it can be used for gardening, cleaning, water hoses and other purposes.



About us

1.Using 100% high quality PU(Polyurethane) raw material to guarantee the ramarkable performance througout.

2.Good elasticity, is easy to operate.

3.Can be used in gas transportation, Industry robort, pneumatic tool, assembly plant air pressure tool

4.Custom-made specification/length/size are doable.



Product parameters

ITEM No.	ID x OD (mm)	Total Tube Length (M)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Max working Pressure (BAR/PSI)
HKC080502	5.0 x8.0	2.0	740	500	140	100	42	10/145
HKC080504	5.0 x8.0	4.0	930	500	330	100	42	10/145
HKC080506	5.0 x8.0	6.0	1120	500	520	100	42	10/145
HKC080508	5.0 x8.0	8.0	1300	500	700	100	42	10/145
HKC106502	6.5 x10.0	2.0	740	500	140	100	42	10/145
HKC106504	6.5 x10.0	4.0	930	500	330	100	42	10/145
HKC106506	6.5 x10.0	6.0	1120	500	520	100	42	10/145
HKC106508	6.5 x10.0	8.0	1310	500	710	100	42	10/145
HKC120802	8.0 x12.0	2.0	740	500	140	100	60	10/145
HKC120804	8.0 x12.0	4.0	920	500	320	100	60	10/145
HKC120806	8.0 x12.0	6.0	1100	500	500	100	60	10/145
HKC120808	8.0 x12.0	8.0	1280	500	680	100	60	10/145
HKC161102	11.0 x16.0	2.0	720	500	120	100	75	10/145
HKC161104	11.0 x16.0	4.0	880	500	280	100	75	10/145
HKC161106	11.0 x16.0	6.0	1040	500	440	100	75	10/145
HKC161108	11.0 x16.0	8.0	1210	500	610	100	75	10/145



FAQ

Q: Can you produce the hose with my own brand ?

A: Yes, we have been offering OEM service for 10 years.



Q: Can you send us a sample to test quality before ordering ?

A: Yes, we can provide sample by free but the freight and other charges is payed by the customers.



Q: Could we pay a visit to your factory ?

A: Yes, you are always welcome to visit our factory.



Q: Can you help us do the custom clearance ?

A: Yes, we can. We can help you find a professional custom clearance company to do it.



Q: Can we get the goods without your company name to export ?

A: Yes, we can. We are allowed to use your designated agent's name if you have one.



Q: Can you produce goods with special specification ?

A: First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible.
