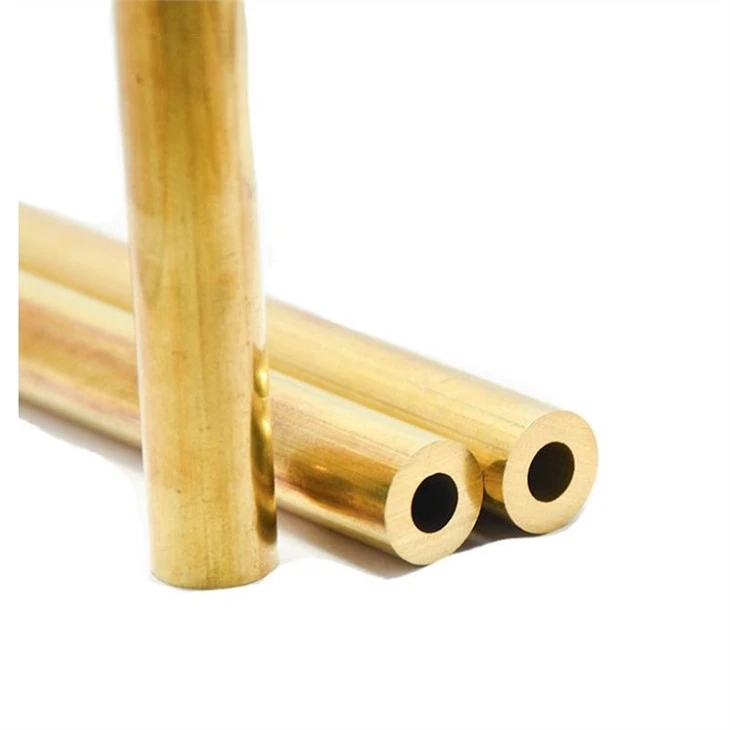

Copper Pipes For Air Conditioners
Type: straight copper pipe,pancake coil copper pipe,capillary copper pipe
Length : 1m,2m,3m,6m,or as required
Hardness: 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
Surface: mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
Product Description:
Feature
1)Light weight, good thermal conductivity, high strength at low temperature.
It is often used in the manufacture of heat exchange equipment (such as condenser, etc.). It is also used in the assembly of cryogenic pipelines in oxygen production equipment. Small diameter copper pipe is often used for conveying pressurized liquid (such as lubrication system, oil pressure system, etc.) and as a gauge tube.
2)Copper pipe has strong, corrosion-resistant characteristics.
So cooper tube become the modern contractor in all residential commercial housing plumbing, heating and cooling pipeline installation first choice.
3)Copper pipe has high strength, easy to bend, easy to twist, not easy crack, not easy to break.
So copper tube has a certain anti-frost bilge and anti-impact ability, so the copper water pipe in the water supply system in the building once installed, use up safe and reliable, even without maintenance and maintenance.
Product parameters
Nominal Standard Size inch | Outside Diameter inch | Wall thickness and tolerances(inch) | calculated Weight 1b/ft | |||||||
Type K | K | Type L | L | Type M | M | Type K | Type L | Type M | ||
WT | Tolerance | WT | Tolerance | WT | Tolerance | |||||
1/4" | 0.375 | 0.035 | 0.0035 | 0.03 | 0.003 | - | - | 0.145 | 0.126 | - |
3/8" | 0.5 | 0.049 | 0.005 | 0.035 | 0.004 | 0.025 | 0.002 | 0.269 | 0.198 | 0.145 |
1/2" | 0.625 | 0.049 | 0.005 | 0.04 | 0.004 | 0.028 | 0.003 | 0.344 | 0.285 | 0.204 |
5/8" | 0.75 | 0.049 | 0.005 | 0.042 | 0.004 | - | - | 0.418 | 0.362 | - |
3/4" | 0.875 | 0.065 | 0.006 | 0.045 | 0.004 | 0.032 | 0.003 | 0.641 | 0.455 | 0.328 |
1" | 1.125 | 0.065 | 0.006 | 0.05 | 0.005 | 0.035 | 0.004 | 0.839 | 0.655 | 0.465 |
11/4" | 1.375 | 0.065 | 0.006 | 0.055 | 0.006 | 0.042 | 0.004 | 1.04 | 0.884 | 0.682 |
11/2" | 1.625 | 0.072 | 0.007 | 0.06 | 0.006 | 0.049 | 0.005 | 1.36 | 1.14 | 0.94 |
Application
Excellent heat transfer and conductivity.Very easy to shape or bend, good corrosion resistance, good recycling, good value, dimensional accuracy, tolerance is very small.
Although other metals may have similar qualities, the aluminum used in precision tubes for the aluminum industry combines the above qualities in various ways. The product has been widely used in the field of automotive heat exchangers, and is used in commercial and industrial air conditioning and refrigeration industries.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a professional manufacturer in China.
Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock.
Q: Can you print text on the product according to customer requirements?
A: Yes, make labels according to your exact requirements.
Q: how can we guarantee quality?
A: Always a pre-production sample before mass production;Always final Inspection before shipment.
Q: Can you produce customized goods ?
A: Yes, the size, diameter and length can be produced as per client's requirements.
Q: Do you accept OEM?
A: Yes, OEM is available.
