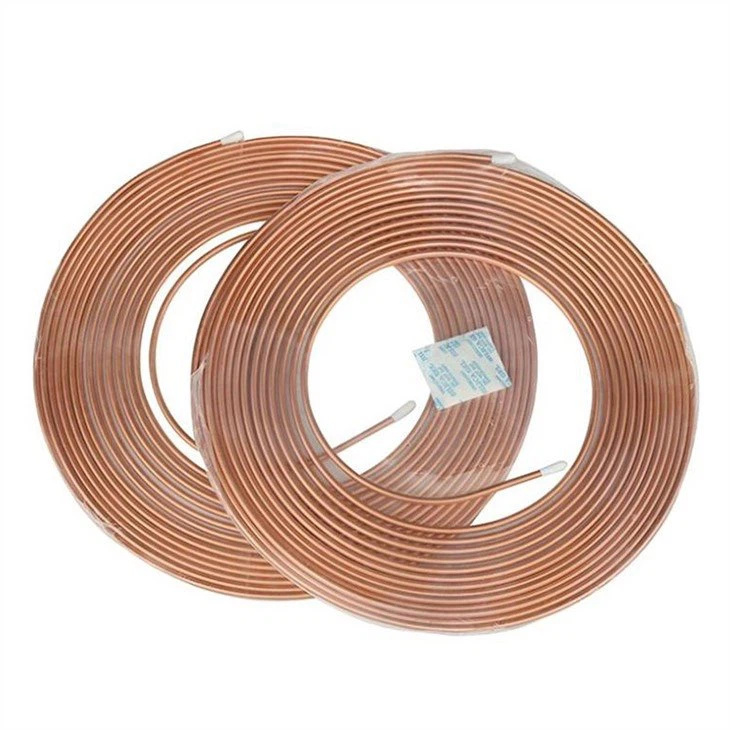

Air Conditioning Copper Pipe
Shape: Round,Square,Rectangular,Oval,half-round
OD: 3.5-300mm
Thickness: 0.3-9mm
Length: 3-36m or upon request
Ultimate Strength (≥ MPa): 250
Elongation (≥ %): 30
Application: Water tube, Air condition or Refrigerator, Water heater
Product Description:
The copper tube has a strong and corrosion-resistant property, and it is the first choice for modern contractors to install the plumbing, heating and cooling pipes in all residential commercial buildings.
1.Light weight, good thermal conductivity, high strength at low temperature.
It is often used in the manufacture of heat exchange equipment (such as condenser, etc.). It is also used in the assembly of cryogenic pipelines in oxygen production equipment. Small diameter copper pipe is often used for conveying pressurized liquid (such as lubrication system, oil pressure system, etc.) and as a gauge tube.
2.Copper pipe has strong, corrosion-resistant characteristics.
So cooper tube become the modern contractor in all residential commercial housing plumbing, heating and cooling pipeline installation first choice..
3.Copper pipe has high strength, easy to bend, easy to twist, not easy crack, not easy to break.
So copper tube has a certain anti-frost bilge and anti-impact ability, so the copper water pipe in the water supply system in the building once installed, use up safe and reliable, even without maintenance and maintenance.
Product parameters
Nominal Standard Size inch | Outside Diameter inch | Wall thickness and tolerances(inch) | calculated Weight 1b/ft | |||||||
Type K | K | Type L | L | Type M | M | Type K | Type L | Type M | ||
WT | Tolerance | WT | Tolerance | WT | Tolerance | |||||
1/4" | 0.375 | 0.035 | 0.0035 | 0.03 | 0.003 | - | - | 0.145 | 0.126 | - |
3/8" | 0.5 | 0.049 | 0.005 | 0.035 | 0.004 | 0.025 | 0.002 | 0.269 | 0.198 | 0.145 |
1/2" | 0.625 | 0.049 | 0.005 | 0.04 | 0.004 | 0.028 | 0.003 | 0.344 | 0.285 | 0.204 |
5/8" | 0.75 | 0.049 | 0.005 | 0.042 | 0.004 | - | - | 0.418 | 0.362 | - |
3/4" | 0.875 | 0.065 | 0.006 | 0.045 | 0.004 | 0.032 | 0.003 | 0.641 | 0.455 | 0.328 |
1" | 1.125 | 0.065 | 0.006 | 0.05 | 0.005 | 0.035 | 0.004 | 0.839 | 0.655 | 0.465 |
11/4" | 1.375 | 0.065 | 0.006 | 0.055 | 0.006 | 0.042 | 0.004 | 1.04 | 0.884 | 0.682 |
11/2" | 1.625 | 0.072 | 0.007 | 0.06 | 0.006 | 0.049 | 0.005 | 1.36 | 1.14 | 0.94 |
Application
1. Pancake Coil for ACR, General Engineering Applications
2. LWC Coil for ACR, General Engineering Applications
3. Straight Copper Tubes for ACR and Refrigeration
4. Inner-grooved copper tube for ACR and Refrigeration
5. Copper Pipe for Transportation System of water, gas and oil
6.PE-coated copper tube for water/gas/oil transportation system
7.Semi-finished Copper tube for industrial applications
FAQ
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final Inspection before shipment.
Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: Could you calculate the shipping cost for me?
A: Of course, we honored to do that! Before freight, please well let us know which seaport or airport near your place.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Can I place sample order first?
A: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
