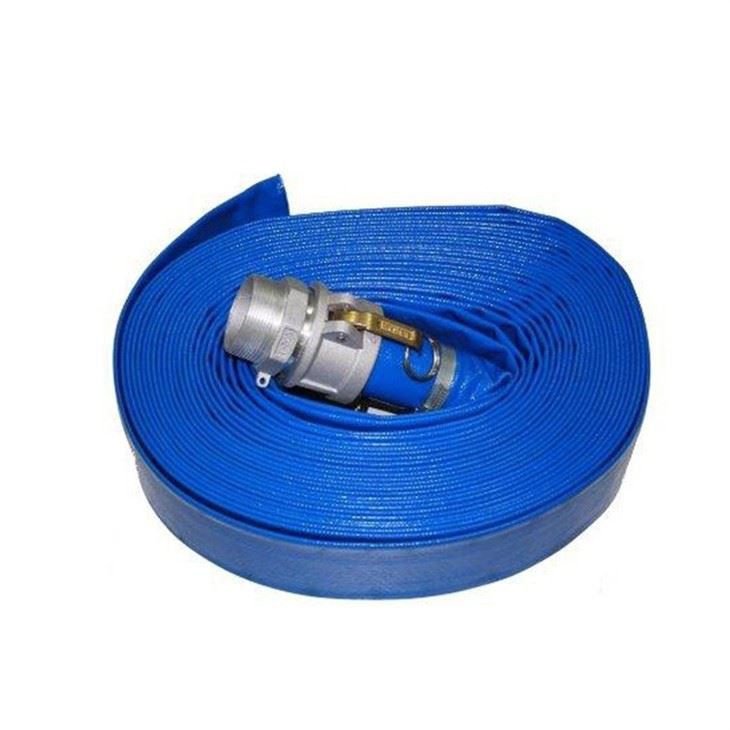

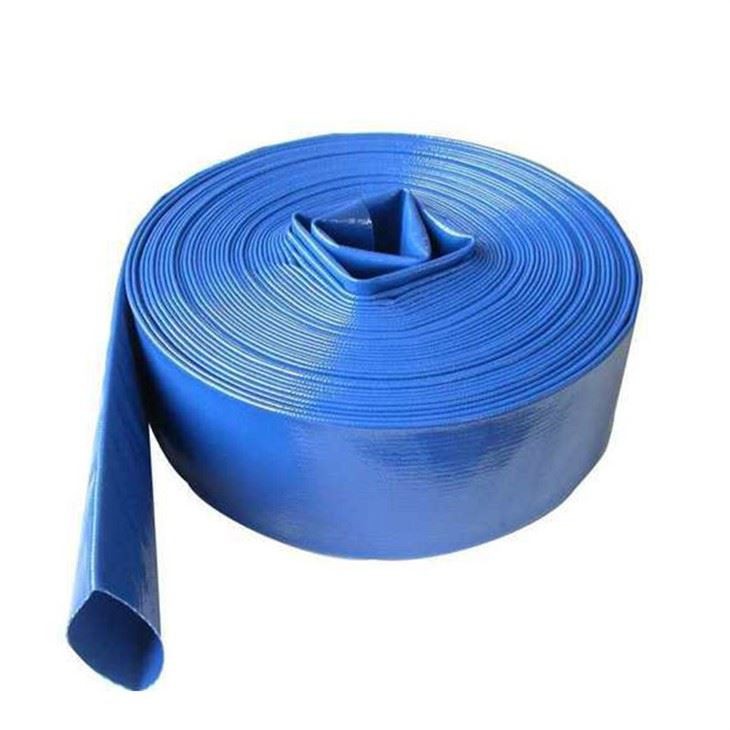

Food Grade Pvc Layflat Hose
Construction of PVC Layflat Hose
Tube: Extrude industrial grade PVC.
Reinforcement: Reinforced with polyester yarn.
Constant operation: -5℃ to +65℃
Application:For suck or dicharge large flow air, water, dust, mud, or chemical solvent for agriculture irrigation, industrial water, construction, hardware, garden tools, etc.
| Light Duty PVC Layflat Hose | |||||||||
| Part No. | Inch Size | I.D | O.D | Thickness | W.P | B.P. | Length | Weight | Volume |
| (mm) | (mm) | (mm) | (bar) | (bar) | (m/roll) | (kg/m) | (m3/roll) | ||
| LF-26 | 1" | 26 | 28.6 | 1.30 | 4 | 12 | 100 | 0.15 | 0.022 |
| LF-33 | 1-1/4" | 33 | 35.4 | 1.20 | 4 | 12 | 100 | 0.17 | 0.025 |
| LF-41 | 1-1/2" | 41 | 43.4 | 1.20 | 5 | 15 | 100 | 0.19 | 0.028 |
| LF-53 | 2" | 53 | 55 | 1.00 | 4 | 12 | 100 | 0.22 | 0.032 |
| LF-66 | 2-1/2” | 66 | 68.2 | 1.10 | 4 | 12 | 100 | 0.30 | 0.049 |
| LF-78 | 3" | 78 | 80.2 | 1.10 | 4 | 12 | 100 | 0.36 | 0.057 |
| LF-104 | 4" | 104 | 106.5 | 1.25 | 4 | 12 | 100 | 0.55 | 0.09 |
| LF-128 | 5" | 128 | 130.7 | 1.35 | 3.5 | 10 | 100 | 0.75 | 0.102 |
| LF-155 | 6" | 155 | 157.7 | 1.35 | 3 | 9 | 100 | 0.90 | 0.12 |
| LF-207 | 8" | 207 | 211 | 2.00 | 3 | 9 | 100 | 1.60 | 0.212 |
| LF-207H | 8" | 207 | 212.3 | 2.65 | 3 | 9 | 100 | 2.02 | 0.234 |
| LF-257 | 10" | 257 | 261.8 | 2.40 | 2.5 | 7 | 50 | 2.60 | 0.18 |
| LF-308 | 12" | 308 | 312.7 | 2.35 | 2 | 6 | 50 | 3.00 | 0.21 |
| Standard Duty PVC Layflat Hose | |||||||||
| Part No. | Inch Size | I.D | O.D | Thickness | W.P | B.P. | Length | Weight | Volume |
| (mm) | (mm) | (mm) | (bar) | (bar) | (m/roll) | (kg/m) | (m3/roll) | ||
| LF-20 | 3/4" | 20 | 22.7 | 1.35 | 6 | 21 | 100 | 0.11 | 0.016 |
| LF-26 | 1" | 26 | 28.6 | 1.3 | 6 | 21 | 100 | 0.16 | 0.023 |
| LF-33 | 1-1/4" | 33 | 35.4 | 1.2 | 6 | 21 | 100 | 0.19 | 0.028 |
| LF-41 | 1-1/2" | 41 | 43.4 | 1.2 | 6 | 21 | 100 | 0.22 | 0.031 |
| LF-45 | 1-3/4" | 45 | 47.8 | 1.4 | 6 | 21 | 50 | 0.32 | 0.021 |
| LF-53 | 2" | 53 | 55.7 | 1.35 | 6 | 18 | 100 | 0.3 | 0.039 |
| LF-53H | 2" | 53 | 56 | 1.5 | 8 | 24 | 50 | 0.35 | 0.026 |
| LF-66 | 2-1/2" | 66 | 69.1 | 1.55 | 6 | 18 | 100 | 0.43 | 0.057 |
| LF-78 | 3" | 78 | 81 | 1.5 | 6 | 18 | 100 | 0.5 | 0.069 |
| LF-104 | 4" | 104 | 107.8 | 1.9 | 6 | 18 | 100 | 0.8 | 0.107 |
| LF-128 | 5" | 128 | 132 | 2 | 6 | 18 | 100 | 1.08 | 0.134 |
| LF-155 | 6" | 155 | 159.8 | 2.4 | 6 | 18 | 100 | 1.6 | 0.183 |
| LF-207 | 8" | 207 | 212.2 | 2.6 | 5 | 15 | 50 | 2.2 | 0.135 |
A general purpose PVC water discharge hose ,hose is reinforced with tow spiral plies and longitudinal synthetic cords .homogeneous PVC cover to prevent separation , total new material ,no smelly , no toxic. UV resistant, anti-corrosion life time more than 5years ,easy to install,roll and move ,not intended for use as a fire hose
used in irrigation,water pump, quarries,mining,construction, industrial, general open end water drainage
