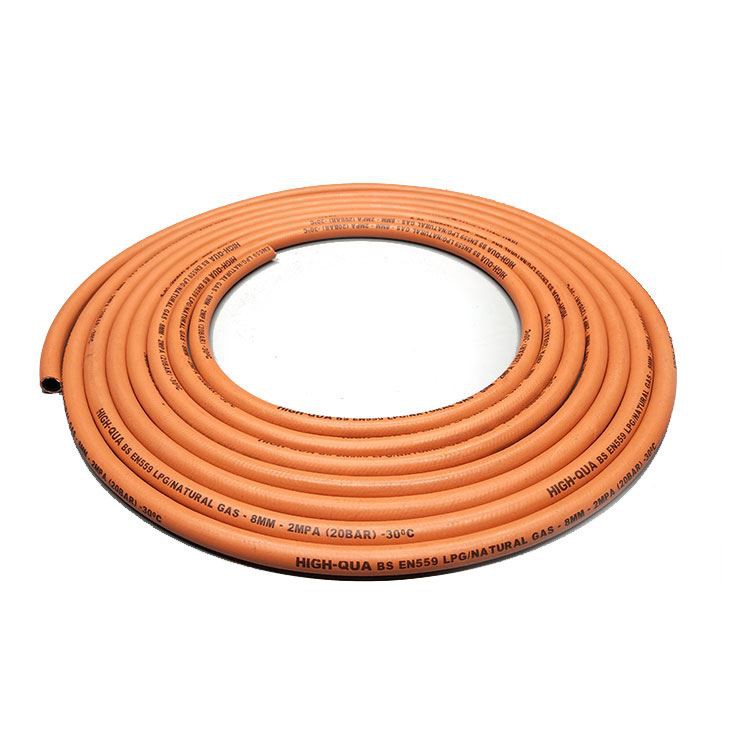

Rubber LPG Hose
Product Material: Nitrile rubber + synthetic fabric+ steel wire
Temperature: -32℃C(-25.6℉)to 80℃℃(+176℉)
Product Color: Orange, yellow, red, black.
Product Size: Accept color customizationSee Below Specification Sheet. Also accept OEM design
Construction:
Tube: Black, smooth, Nitrile synthetic rubber
Reinforcement: High strength synthetic yarn braiding
Cover: orange/red/black, smooth, synthetic rubber NBR or chloroprene CR
Characteristics:
1.Anti abrasion smooth cover
2.Weather and ozone resistant cover
3.Flexible,light weight,less distortion
4.Certification: ISO3821,EN559
| Item | I.D | O.D | W.P | B.P | L | ||||
| inch | mm | mm | bar | psi | bar | psi | m | ft | |
| GASH005 | 3/16" | 4.8 | 12 | 20 | 300 | 60 | 900 | 100 | 330 |
| GASH006 | 1/4" | 6.4 | 13 | 20 | 300 | 60 | 900 | 100 | 330 |
| GASH008 | 5/16" | 7.9 | 15 | 20 | 300 | 60 | 900 | 100 | 330 |
| GASH010 | 3/8" | 9.5 | 17 | 20 | 300 | 60 | 900 | 100 | 330 |
| GASH012 | 1/2" | 12.7 | 21 | 20 | 300 | 60 | 900 | 100 | 330 |
Product Overview
Rubber gas hose is a flexible connecting pipe used to transport gas (such as natural gas, liquefied petroleum gas, etc.), which is widely used in the connection of household gas stoves, water heaters and other gas equipment. This type of hose has become an important safety component in the gas transmission system due to its good flexibility, pressure resistance and sealing performance.
Main features
Pressure resistance: The working pressure is usually 0.4-1.0MPa, and the bursting pressure can reach 3-4 times the working pressure
Temperature range: Generally can be used normally in an environment of -20℃ to +70℃
Flexibility: The minimum bending radius can reach 3-5 times the pipe diameter, which is convenient for installation and layout
Corrosion resistance: Good resistance to sulfide and other components in the gas
Air tightness: The leakage rate is lower than the relevant national standards
Application areas
Household gas stove connection
Gas water heater air intake pipeline
Commercial gas equipment in the catering industry
Temporary connection of industrial gas equipment
Gas meter back pipeline system
Installation precautions
Before installation, check whether the hose has cracks, bubbles and other defects
Ensure that the connection is fixed with a special pipe clamp to prevent it from falling off
Avoid excessive bending or twisting of the hose during installation
Keep away from heat sources and sharp objects to prevent aging or mechanical damage
It is recommended to replace it every 18-24 months, and no longer than 3 years
Maintenance
Regularly check the interface with soapy water for leaks
Avoid using corrosive detergents when cleaning
Be careful not to pull the hose excessively when moving gas equipment
Replace it immediately if hardening, cracking, deformation, etc. are found
It is recommended to drain the residual gas in the pipe when it is not used for a long time
