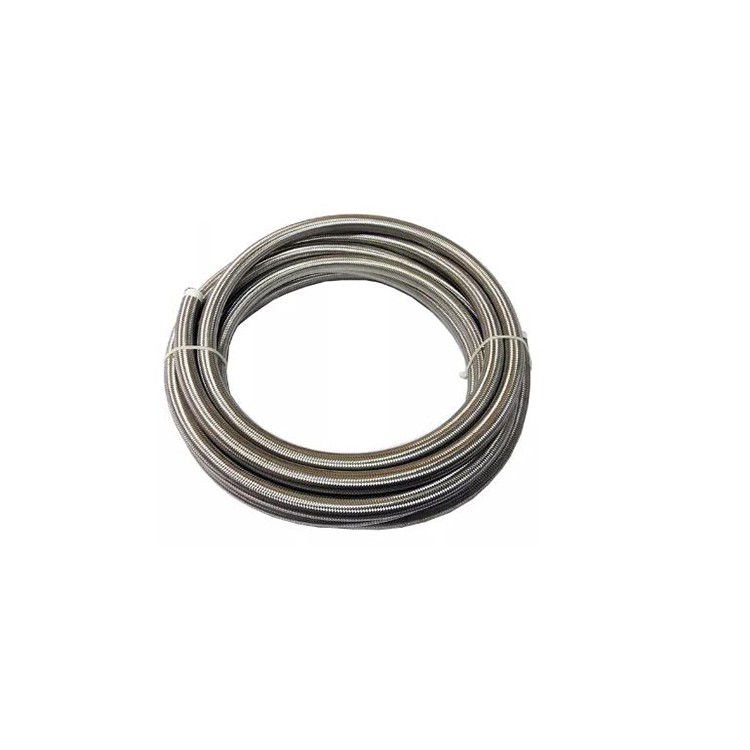

High Pressure Stainless Braided Hose

Product introduction

Name: high pressure stainless braided hose

Stainless Steel: SS304/SS316

Size: DN8-DN400mm

Working Temperature: -40-140(℃)

Pressure: 25(MPa)

Media: Water Gas Water

OD: 5-452MM

Thickness: 0.2-1.5mm



Product Description

Product Application of High Pressure PTFE Teflon Stainless Steel Braided Flexible Propane Hose.

Our products are popular in the demestic market, at the same time, we enjoyed a good reputation from the foreign customers.

This hoses are extensively used to mining, metallurgical, oil, project machinery, chemical, agriculture field. E.g. Mine hydraulic fluid, oil exploration, crane, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery and various machines tools.

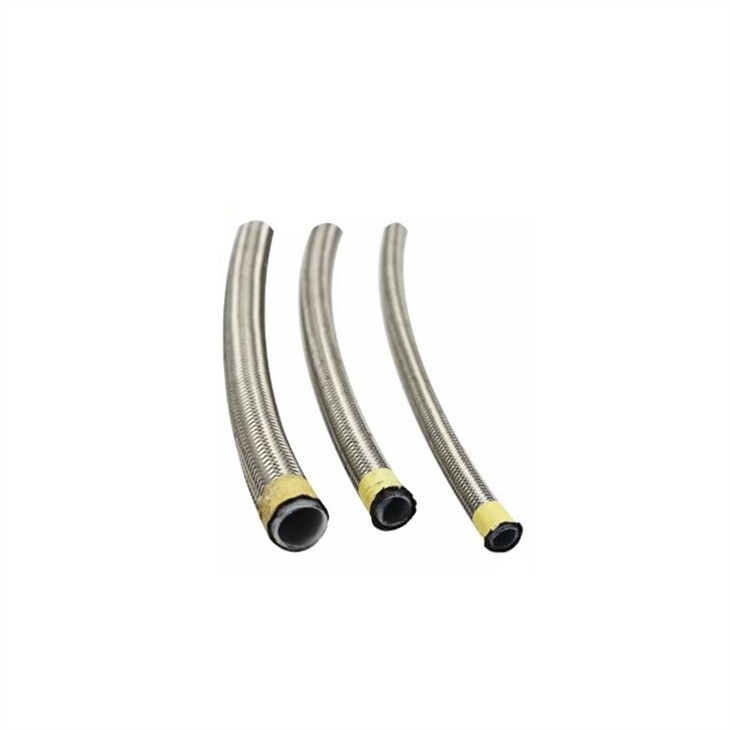

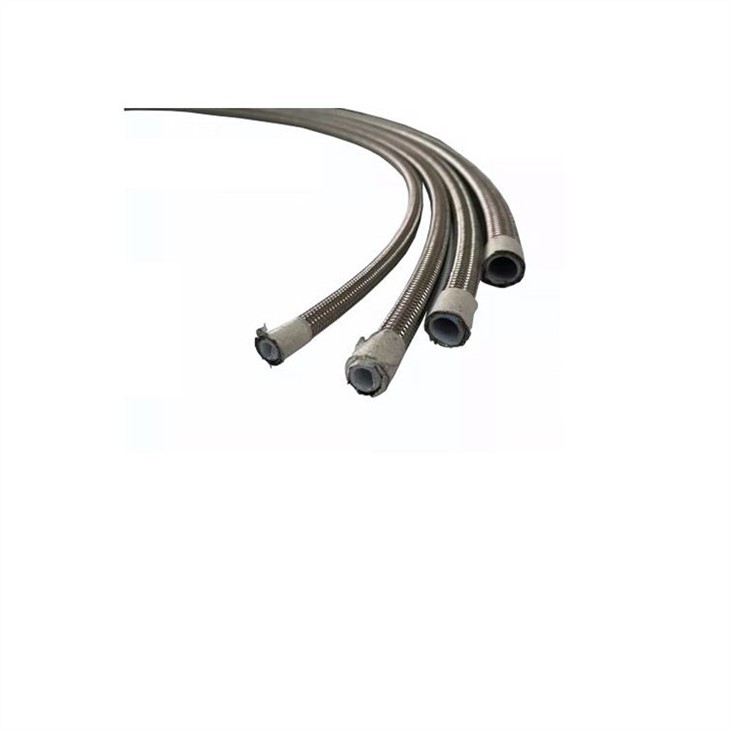

Product display

1.The structure and properties of metal hoses: corrugated metal pipe is a kind of high quality flexible connecting pipe in modern industrial pipeline.It is mainly composed of metal bellows, metal mesh and various types of joints.Its inner tube is a spiral corrugated or circular corrugated stainless steel bellows.

2.The outer layer of the bellows is made of stainless steel wire or stainless steel strip with certain parameters.The joints on both ends of the hose are prepared according to the connections of the user's pipe or equipment.

Our metal hoses are made of high quality metal materials through advanced manufacturing and inspection equipment Processed.



Our service

♦ OEM Manufacturing welcome: Product, Package

♦ We provide sample orders

♦ We will reply you for your inquiry in 24 hours

♦ After sending, we will track the products for you once every two days, until you get the products

♦ When you get the goods, have any questions, we will provide the best quality service

Braided Convoluted hose comprises a Convoluted PTFE tube liner and single or double stainless steel outer braid.

It features excellent flexibility and kink resistance for superior performance in chemical transfer, high temperature hydraulics and hose applications requiring tight routings, high temperature media transfer and general-purpose applications.

The hose core is made from virgin 100% PTFE resin without any pigment or additive.

The wire braiding is produced from AISI 304 or 316 stainless steel wire.

Anti-static(carbon) version of all hoses are available, consult us for further information.



Product parameters

SPECIFICATIONS FOR TEFLON HOSE
DN MM	Hose inch	O.D mm	Working Pressure Mpa	Burst Pressure Mpa	Min.Bend Radius mm	Weight kg/m
3	1/8	6.6	10.5	82.7	40	0.065
5	3/16	7.9	10.5	68.9	50	0.095
6	1/4	9.5	10.5	62.0	75	0.120
8	5/16	11.1	10.5	55.2	100	0.160
10	3/8	12.6	10.5	48.3	125	0.170
13	1/2	16.1	5.6	41.4	165	0.240
16	5/8	19.7	5.6	34.5	200	0.280
19	3/4	23.6	5.6	27.6	230	0.330
22	7/8	26.4	5.6	24.1	230	0.460
25	1	29.6	5.6	24.1	300	0.460



FAQ

Q: Can you produce the hose with my own brand?

A: Yes, we have been offering OEM service for 10 years.



Q: Can you send us a sample to test quality before ordering?

A: Yes, we can provide sample by free but the freight and other charges is payed by the customers.



Q: Could we pay a visit to your factory?

A: Yes, you are always welcome to visit our factory.



Q: Can you help us do the custom clearance?

A: Yes, we can. We can help you find a professional custom clearance company to do it.



Q: Can we get the goods without your company name to export?

A: Yes, we can. We are allowed to use your designated agent's name if you have one.



Q: Can you produce goods with special specification?

A: First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible.
