Sae100 R3 Hose
video

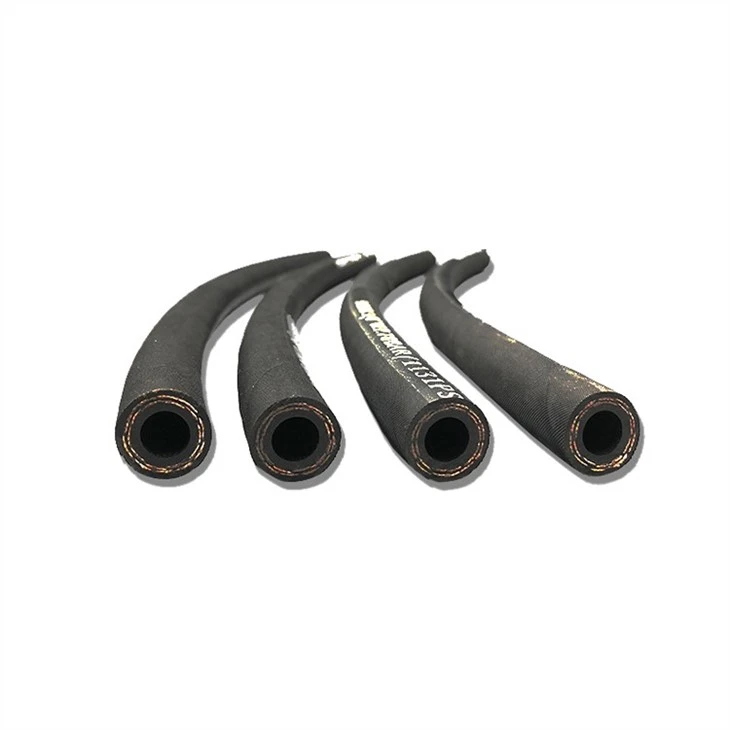

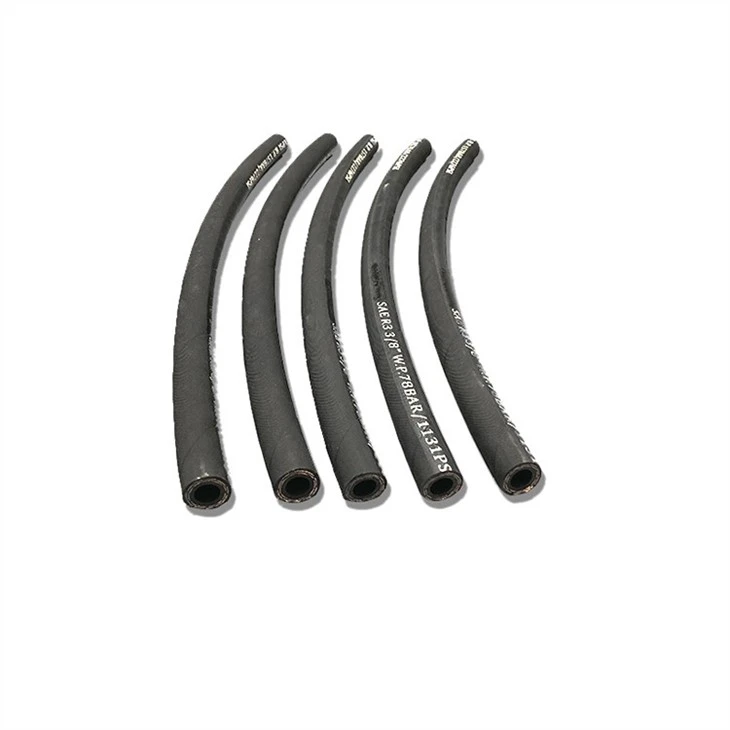

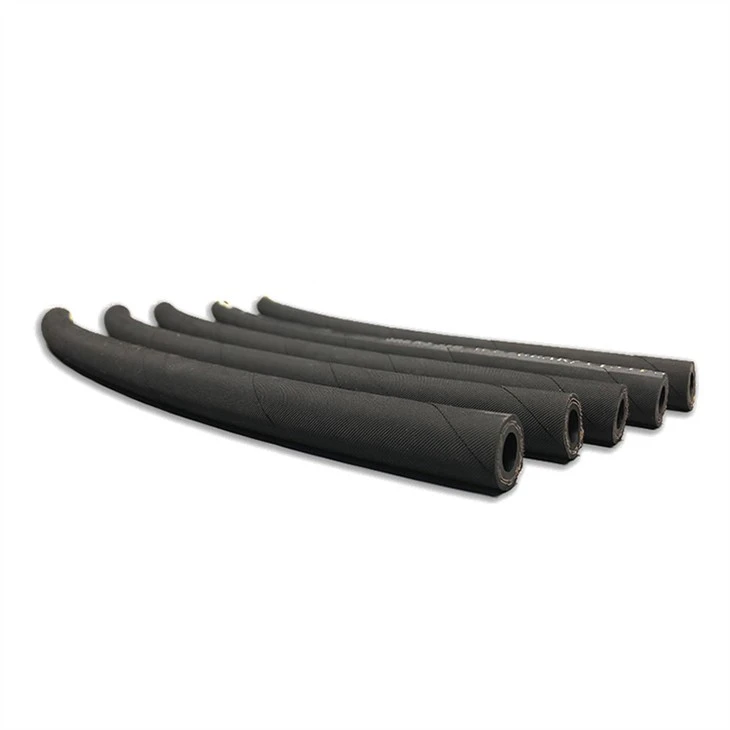

Sae100 R3 Hose

Name: sae100 r3 hose Model Number: R3/3TE R6/1TE/2TE Processing Service: Hose Cutting Product name: SAE100 R3 Synthetic ester base oil application rubber hose with high thread reinforced Material: NBR Color: Black/Red/Blue/Yellow/Gray/Green Size: 1/4-2'' Reinforcement: High Tensile Fiber Braided
Send Inquiry
Product Introduction

Features

It provides superior oil resistance, heat resistance and aging resistance by using special synthetic rubber.

It provides high pressure resistance.

It provides superior bonding in hose internal, soft use and small deformation under pressure.

It provides superior kink resistance and fatigue resistance and longer services life.



Application:

A low pressure, textile reinforced hose for petroleum or water based hydraulic fluids or pneumatic applications.  Not to be used for air brake.




Hose Type
I.D.
O.D.
W.P
B.P
B.R
W.T
Dash
Inch
mm
mm
MPa
PSI
MPa
PSI
mm
kg/m
R6-03
3/16"
4.8
11
3.5
508
14
2030
50
0.111
R6-04
1/4"
6.4
12.5
2.8
406
11.2
1624
65
0.132
R6-05
5/16"
7.9
14
2.8
406
11.2
1624
75
0.153
R6-06
3/8"
9.5
15.7
2.8
406
11.2
1624
75
0.179
R6-08
1/2"
12.7
19.5
2.8
406
11.2
1624
100
0.249
R6-10
5/8"
15.9
22.9
2.4
348
9.6
1392
125
0.308
R6-12
3/4"
19.1
26
2.1
305
8.4
1218
150
0.357
