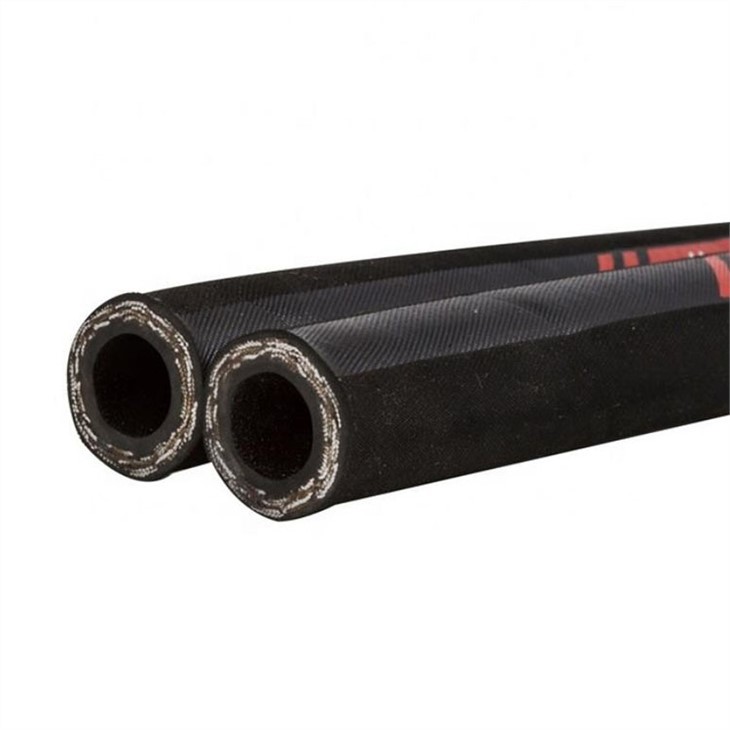

1 1/2 Inch En856 4sp Hydraulic Hose Pipe
Brand Name: HAIKUO
Inner Tube Material: Oil Resistant NBR Rubber
Reinforcement Layer: Four Layers of Spiraled Steel Wire
Cover Tube Material: Abrasion & Weather Resistant NBR Rubber
Temperature Range: -40℃ - + 120℃
Product Description:
Characteristics
1.High pressure resistance
2.High temperature resistance
3.Soft and portable
4.Deformation resistant
5.Beautiful appearance
6.Striated, smooth or cloth surface
7.Good Insulation and abrasion resistance
8.Steel wire braided or spiraled layers reinforcement
9.Durable with high quality
10.Free sample
11.Fast delivery
Notice about the hydraulic rubber hose (PSF)
1.The hose should not be used to exceed the designed pressure.
2.The temperature of the medium being conveyed through the hose should be in the normal case, or reduce the use life of the hose.
3.The hose should not be used less than the minimum bend radius of the hose, in order to avoid bending near the pipe joints .
4.The hose should be handled carefully, and should not drag on the sharp and rough surface, should not be bent and squashed.
5.Pls keep the hose clean and prevent external objects into the hose, in case of hindering the transmission fluid and damaging the equipment.
6.If the hose’s weight cause excessive deformation,the hose should be supported.
Product parameters
|
Specification |
OD
|
Working pressure |
Bar | |
|
inch/mm |
Mpa / PSI | |||
|
1/4" |
6 |
13.7 |
32 / 4640 |
320 |
|
5/16" |
8 |
15.7 |
28 / 4060 |
280 |
|
3/8" |
10 |
17.7 |
26 / 3770 |
260 |
|
1/2" |
13 |
20.7 |
23 / 3335 |
230 |
|
5/8" |
16 |
24 |
18 / 2610 |
280 |
|
3/4" |
19 |
27.5 |
16 / 2320 |
160 |
|
1" |
25 |
35 |
12 / 1740 |
120 |
|
1-1/4" |
32 |
42 |
9 / 1305 |
90 |
|
1-1/2" |
38 |
48.5 |
7 / 1015 |
70 |
|
2" |
51 |
61.5 |
4 / 580 |
40 |
FAQ
Q: Are you a factory or trading company?
A: We are a factory.
Q: What kind of packing can you provide?
A: Tailor-made packaging method according to customer's requirement, otherwise, we will make the sea-worthy packing.
Q: Could we pay a visit to your factory ?
A: Yes, you are always welcome to visit our factory.
Q: Can you send us a sample to test quality before ordering ?
A: Yes, we can provide sample by free but the freight and other charges is payed by the customers.
Q: Can you help us do the custom clearance ?
A: Yes, we can. We can help you find a professional custom clearance company to do it.
Q: When can I get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us directly, so that we will regard your inquiry priority.
