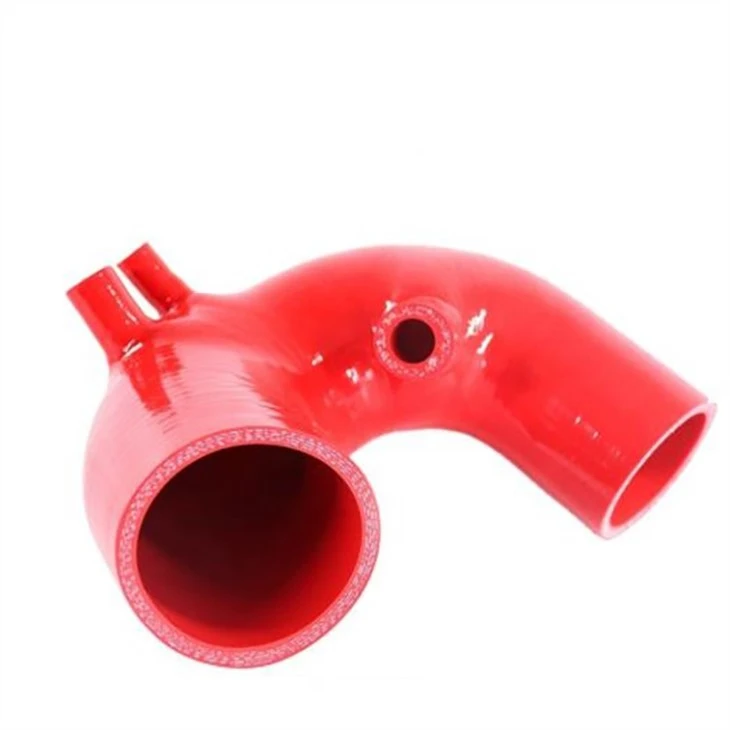

Silicone Turbo Inlet Hose
Temperature: -60 to 260 degree
Colors: Blue/Red /black/green/orange/Yellow
Pressure: 0.3Mpa~1.2Mpa
Product introduction
Product: silicone turbo inlet hose
Material: Silicone rubber + Fabric reinforcement
Temperature: -60 to 260 degree
Colors: Blue/Red /black/green/orange/Yellow or according to the customers request
Pressure: 0.3Mpa~1.2Mpa
Product description
Silicone rubber hoses are more useful under conditions that would cause the deterioration of many parts made of typical organic materials. Its typical properties are as below:
1.High temperature resistance.
2.Electrochemical degradation resistance.
3.UV and ozone resistance.
4.Ordinary silicone cannot resisit oil, but fluorosilicone with its unique properties provides resistance to many fuels, oils and solvents, including gasoline.
Silicone hose is noted for its water resistance. It has an extremely low degree of water absorption and its mechanical properties show minimal change, even after long periods of immersion.
Advantage
- Excellent flexibility during the assembly process
- Excellent resistance to Ozone and UV
- Excellent resistance to extremely low and high temperatures
- High tear resistance
- Corrosion resistance
- Good elongation at break
- High tensile strength
- Low chemical reactivity
- Not affected by anti-freeze or anti-rust liquids
- Long lifetime
- Naturally electrically insulating
- No taste, no toxic, eco-friendly
Product parameters
|
Product name |
ID/mm |
ID/Inch |
|
straight meter silicone hose |
6mm-152mm |
0.25"-6" |
|
straight reducer hose |
6.5mm-127mm |
0.25"-5" |
|
45 degree elbow silicone hose |
6.5mm-152mm |
0.25"-6" |
|
45 degree reducer elbow silicone hose |
6.5mm-152mm |
0.25"-6" |
|
45 degree elbow silicone hose |
51mm-102mm |
2"-4" |
|
90 degree elbow silicone hose |
6.5mm-152mm |
0.25"-6" |
|
90 degree reducer elbow silicone hose |
6.5mm-152mm |
0.25"-6" |
|
135 degree elbow silicone hose |
16mm-89mm |
0.63"-3.5" |
|
180 degree elbow silicone hose |
16mm-89mm |
0.63"-3.5" |
|
T shape silicone hose |
38mm-76mm |
1.5"-3" |
|
Hump |
51mm-102mm |
2"-4" |
|
Reducing hump |
51mm-102mm |
2"-4" |
|
one hump silicone hose |
25mm-114mm |
1"-4.5" |
|
two hump silicone hose |
89mm-102mm |
3.5"-4" |
|
one hump reducer silicone hose |
51mm-89mm |
2"-3.5" |
|
bellow hose with 1 ring |
51mm-102mm |
2"-4" |
|
bellow hose with 3 ring |
57mm-152mm |
2"-6" |
|
bellow hose with 4 ring |
63.5mm-152mm |
2"-6" |
|
bellow hose with 5 ring |
63.5mm-152mm |
2"-6" |
|
bellow hose with 6 ring |
63.5mm-152mm |
2"-6" |
|
silicone vacuum hose |
3mm-12mm |
1/8-1/ 2inch |
|
silicone heater hose |
8mm-32mm |
5/16-1 1/4 inch |
|
If you have other silicone hoses for automobiles, you can contact us and we will customize it for you. |
||
FAQ
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final Inspection before shipment.
Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: Could you calculate the shipping cost for me?
A: Of course, we honored to do that! Before freight, please well let us know which seaport or airport near your place.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Can I place sample order first?
A: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
