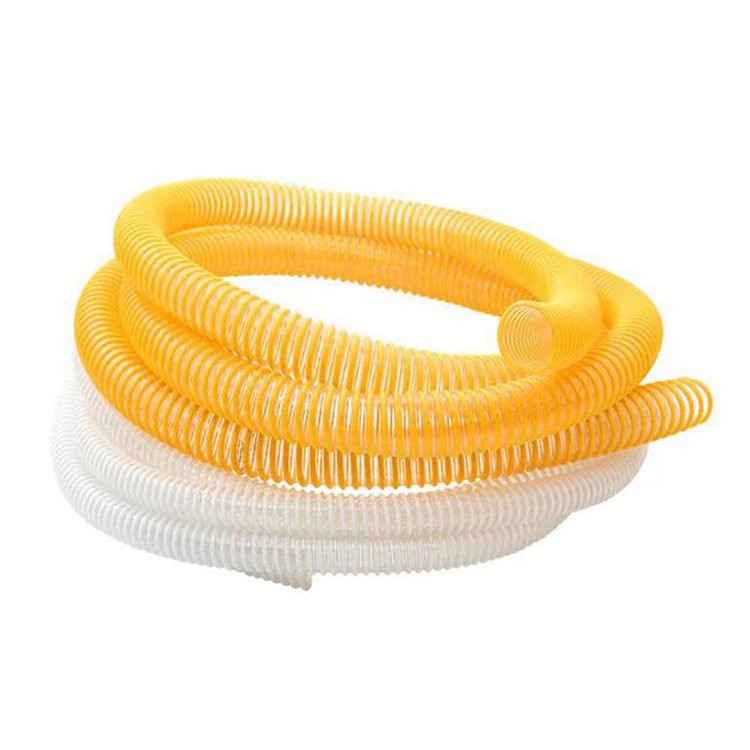

200mm Large Diameter PVC Pipe with Korea Advanced Technology
Material: PVC
Length: 30/50/100M
Specifications: 1"-12"
Color: Blue, red, yellow or as customer request
Characteristic: Stretching resistant, larger water discharge
Application: Sludge discharge in agriculture, construction, industry, mining
Working Pressure: 2-8bar
The company is a large-scale group with Garden Hose Tap Connector Fitting, Disposable Hookah Hose, Garden Drip Irrigation Tubing as the main line, multi-functional and full coverage of domestic and foreign market channels and certain industrial chain integration capabilities. We have established long-term cooperative relations with many enterprises with good credit and excellent service. We have concentrated all our advantages to increase technological innovation and market development. We continue to develop and innovate concepts, mechanisms, technology, and management in order to seek long-term development.
Product Description:
Feature:
1. Good transparency and easy monitoring liquid flow.
2. Small bending radius and great ability of minus pressure resistance
Characteristics
Being light in weight,with good resistance to the hard weather conditions and minus pressure,and small bending radius.
Excellent resistance to pressure,external impacts, chemical, gases,light acids and saline water.
Product parameters
Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
inch | mm | inch | mm | kg/m | bar | psi | m | ft |
3/4 | 19 | 0.984 | 25 | 0.28 | 8 | 120 | 50 | 150 |
1 | 25 | 1.221 | 31 | 0.35 | 8 | 120 | 50 | 150 |
1-1/4 | 32 | 1.496 | 38 | 0.40 | 7 | 100 | 50 | 150 |
1-1/2 | 38 | 1.811 | 46 | 0.65 | 7 | 100 | 50 | 150 |
2 | 51 | 2.362 | 60 | 1.05 | 6 | 90 | 50 | 150 |
2-1/2 | 64 | 2.913 | 74 | 1.30 | 6 | 90 | 30 | 90 |
3 | 76 | 3.386 | 86 | 1.70 | 5 | 75 | 30 | 90 |
4 | 102 | 4.488 | 114 | 3.00 | 5 | 75 | 30 | 90 |
5 | 127 | 5.512 | 140 | 3.60 | 4 | 60 | 30 | 90 |
6 | 153 | 6.614 | 168 | 5.50 | 4 | 60 | 20 | 60 |
8 | 203 | 8.622 | 219 | 7.00 | 3 | 45 | 10 | 30 |
10 | 254 | 10.787 | 274 | 12.00 | 2 | 30 | 10 | 30 |
12 | 305 | 12.953 | 329 | 18.00 | 2 | 30 | 10 | 30 |
Applications:
Widely used for conveyance of water, air, oil, gas,weak chemicals etc in industry, agriculture and family also.The hose used for foodstuffs is made of special materials. It is light, flexible, durable, non-toxic, without odor, transparent. It can also be used for conveying milk, beverage, distilled liquor, beer, jan and other foods in vending machines, ice machine and refrigerators, etc.
Packing:
In general, the packing will use woven bag and plastic film.
Special packing as customer request.Multiple modes of transportation available,
We can choose the most economical way for you.
FAQ
Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Can you send us a sample to test quality before ordering ?
A: Yes, we can provide sample by free.
Q: Can you help us do the custom clearance ?
A: Yes, we can. We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: Can we get the goods without your company name to export ?
A: Yes, we can. We are allowed to use your designated agent's name if you have one.
Q: Can you produce goods with special specification ?
A: First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery


Our primary purpose is to give our shoppers a serious and responsible company relationship, giving personalized attention to all of them for 200mm Large Diameter PVC Pipe with Korea Advanced Technology. Under the conditions of socialist market economy, we insist on being market-oriented and customer-centered. Relying on our leading international concepts, advanced technology, excellent service and strict effect control, we have produced strong market influence and brand competitiveness, and won high recognition from customers.
