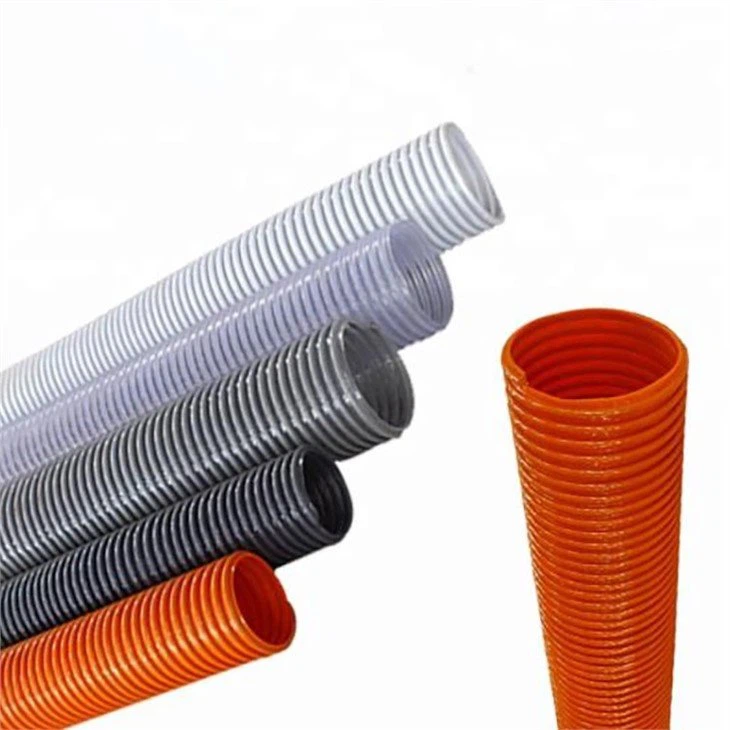

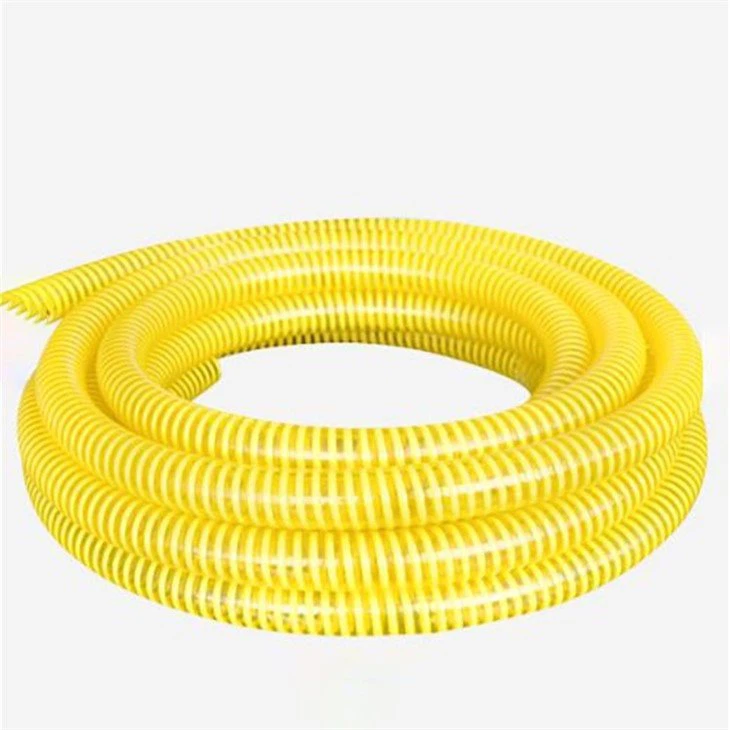

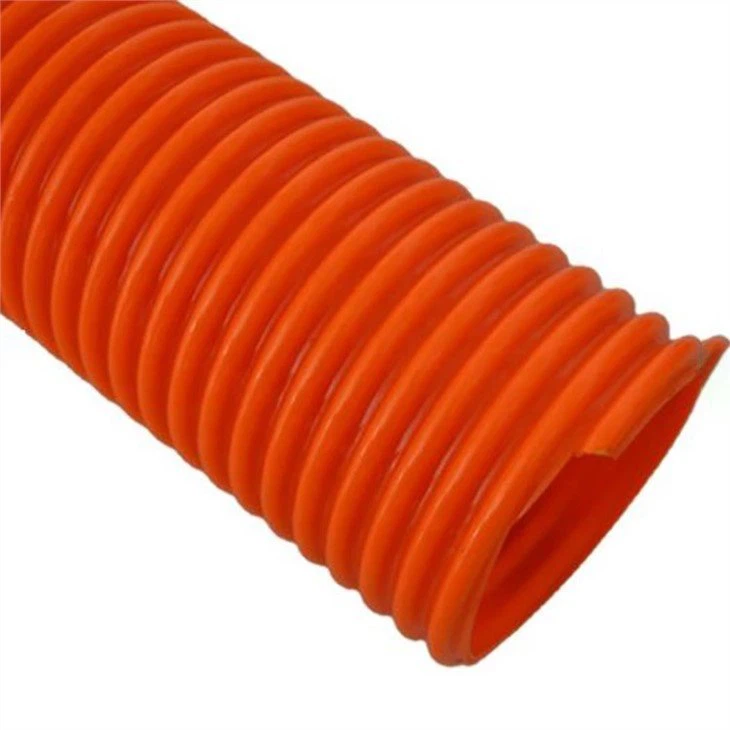

PVC Suction Hose Pipe 2 Inch
Reinforcement: Rigid PVC
Cover: Green,yellow, red, black, white, gray, blue smooth surface and corrugated surface
Product introduction
Products name: PVC suction hose pipe 2 inch
Tube: High quality raw material PVC
Reinforcement: Rigid PVC
Cover: Green,yellow, red, black, white, gray, blue smooth surface and corrugated surface
Applications
This hose is light, elastic, minus pressure resistant and with good adaptability.
The hose is suitable for conveying powder, grain, water and oil, etc. in the industry, agriculture, irrigation and civil engineering. It is the ideal alternative of rubber hose and metal pipe.
Working Temperature: -5℃~65℃
Usually we will add different materials to ensure pvc hoses work well under different weather conditions, pvc spring hoses include normal General Purpose pvc suction hose, Oil resistant heavy duty suction hose, Mortar discharge hose, PVC fuel drop hose. High/Low temperature pvc suction hose, PVC Fabric reinforced suction hose, PVC vacuuming intake suction hose. Grit suction hose, PVC helix duct hose, we can combine different performances to meet customer needs. If you are interested in, you can visit our store and check our product category.
Product parameters
Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
inch | mm | inch | mm | kg/m | bar | psi | m | ft |
3/4 | 19 | 0.984 | 25 | 0.28 | 8 | 120 | 50 | 150 |
1 | 25 | 1.221 | 31 | 0.35 | 8 | 120 | 50 | 150 |
1/4 | 32 | 1.496 | 38 | 0.40 | 7 | 100 | 50 | 150 |
1/2 | 38 | 1.811 | 46 | 0.65 | 7 | 100 | 50 | 150 |
2 | 51 | 2.362 | 60 | 1.05 | 6 | 90 | 50 | 150 |
2-1/2 | 64 | 2.913 | 74 | 1.30 | 6 | 90 | 30 | 90 |
3 | 76 | 3.386 | 86 | 1.70 | 5 | 75 | 30 | 90 |
4 | 102 | 4.488 | 114 | 3.00 | 5 | 75 | 30 | 90 |
5 | 127 | 5.512 | 140 | 3.60 | 4 | 60 | 30 | 90 |
6 | 153 | 6.614 | 168 | 5.50 | 4 | 60 | 20 | 60 |
8 | 203 | 8.622 | 219 | 7.00 | 3 | 45 | 10 | 30 |
10 | 254 | 10.787 | 274 | 12.00 | 2 | 30 | 10 | 30 |
12 | 305 | 12.953 | 329 | 18.00 | 2 | 30 | 10 | 30 |
FAQ
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final Inspection before shipment.
Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: Could you calculate the shipping cost for me?
A: Of course, we honored to do that! Before freight, please well let us know which seaport or airport near your place.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Can I place sample order first?
A: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
