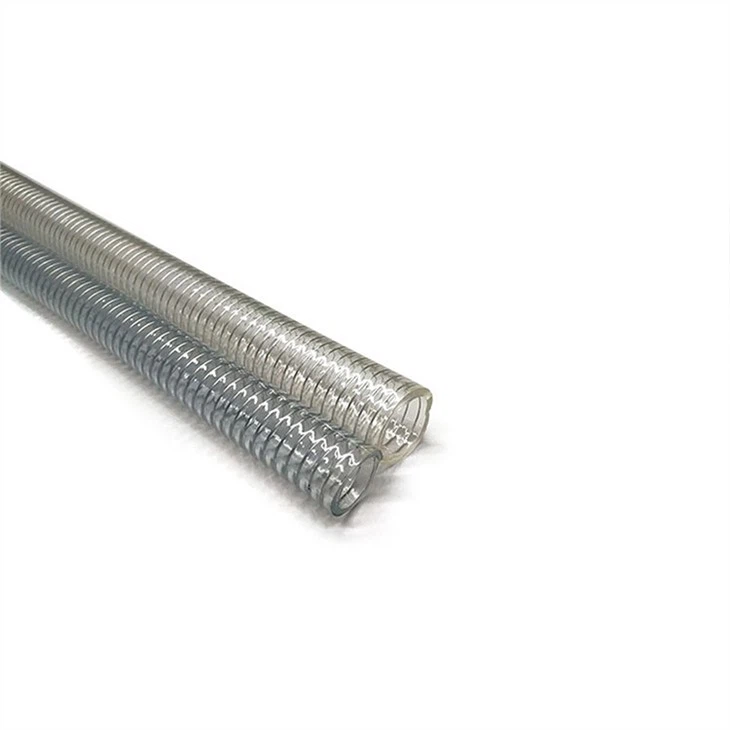

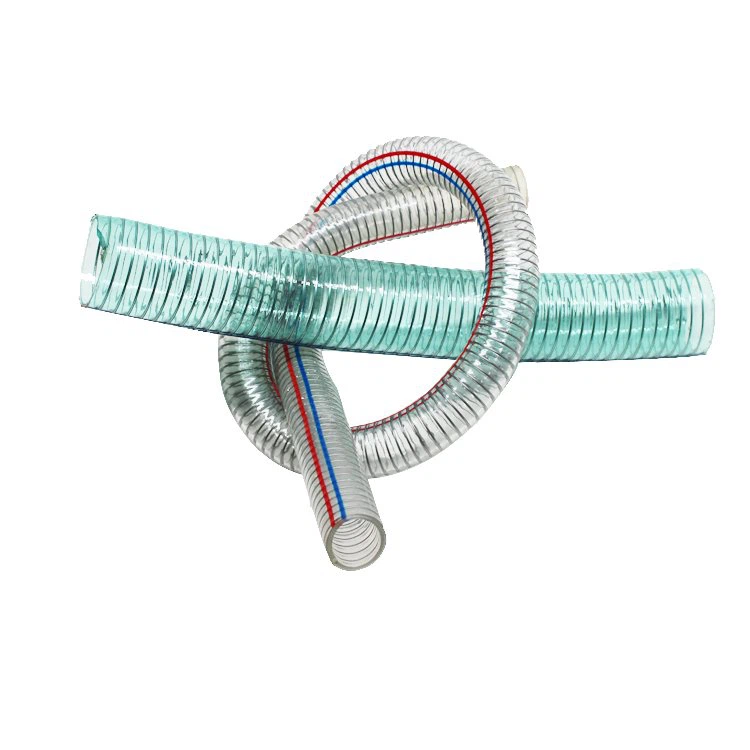

PVC Wire Steel Hose
Material: high quality PVC
Color: transparent, black, white&customized color
Size: 1/2"-10"&customized size
Used: It is used for delivery of water, gas, powder, granule and other liquid under normal condition.
Product Description:
Features
1. High strength reinforcement with sprial steel wire.
suction discharge hose,2 inch flex tubing,transparent plastic tubes,pvc steel wire reinforced hose plastic pipe prices list
2. Flexible and adapt for multi-purpose.
3. Resistant to abrasion, high pressure, chemical and bad weather.
4. Long lasting service life.
5. The Diameter, Thickness, Length and Color can be cusd as per requirement.
Product parameters
SIZE | I.D | O.D | Wall Thickness | W.P | B.P | weight |
Inch | mm | mm | mm | Bar | Bar | Kg/m |
3/8'' | 10 | 16 | 3 | 10 | 30 | 0.2 |
1/2'' | 12 | 18 | 3 | 10 | 30 | 0.22 |
5/8'' | 15 | 22 | 3.5 | 10 | 30 | 0.31 |
3/4'' | 19 | 26 | 3.5 | 10 | 30 | 0.36 |
1'' | 25 | 33 | 4 | 10 | 30 | 0.54 |
1-1/4'' | 32 | 41 | 4.5 | 7 | 21 | 0.775 |
1-1/2'' | 38 | 48 | 5 | 6 | 18 | 1.05 |
1-3/4'' | 45 | 56 | 5.5 | 6 | 18 | 1.3 |
1-7/8'' | 48 | 59 | 5.5 | 6 | 18 | 1.4 |
2'' | 50 | 62 | 6 | 6 | 18 | 1.6 |
2-5/16'' | 58 | 70 | 6 | 5 | 15 | 2 |
2-1/2'' | 63 | 80 | 8.5 | 5 | 15 | 2.8 |
3'' | 75 | 91 | 8 | 5 | 15 | 3.5 |
3-1/2'' | 90 | 108 | 9 | 4 | 12 | 4.5 |
4'' | 100 | 118 | 9 | 4 | 12 | 4.8 |
4-3/8'' | 110 | 123 | 6.5 | 4 | 12 | 4 |
4-5/8'' | 117 | 133 | 8 | 4 | 12 | 5.5 |
5'' | 127 | 143 | 8 | 3 | 9 | 6 |
5-1/2'' | 140 | 156 | 8 | 3 | 9 | 6.5 |
6'' | 152 | 170 | 9 | 3 | 9 | 9 |
8'' | 200 | 224 | 12 | 3 | 9 | 12 |
Application: The hose is widely used for suction and discharge of water, oil and powder in the factories, agriculture, engineering, foodstuffs and sanitation lines, the hose used for foodstuffs is made of special material. It is non-toxic, light, without odor and transparent. The hose can be used for conveying milk, beverage, distilled liquor, beer, jam, and other foods. We can also insert the copper wire into hose. This hose can avoid the block of the flowing in the hose due to static, and protect users from getting an electric shock or electric current impingement. |  |
FAQ
Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Can you send us a sample to test quality before ordering ?
A: Yes, we can provide sample by free.
Q: Can you help us do the custom clearance ?
A: Yes, we can. We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: Can we get the goods without your company name to export ?
A: Yes, we can. We are allowed to use your designated agent's name if you have one.
Q: Can you produce goods with special specification ?
A: First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
