4 Inch Suction Hose
Model Number: 3/4"-12"
Material: PVC
Specification: 19mm to 300mm
Length: 100m 50m
Thickness: 2mm to 12mm
color: green, red, yellow, black etc
Application: water/oil/air suction

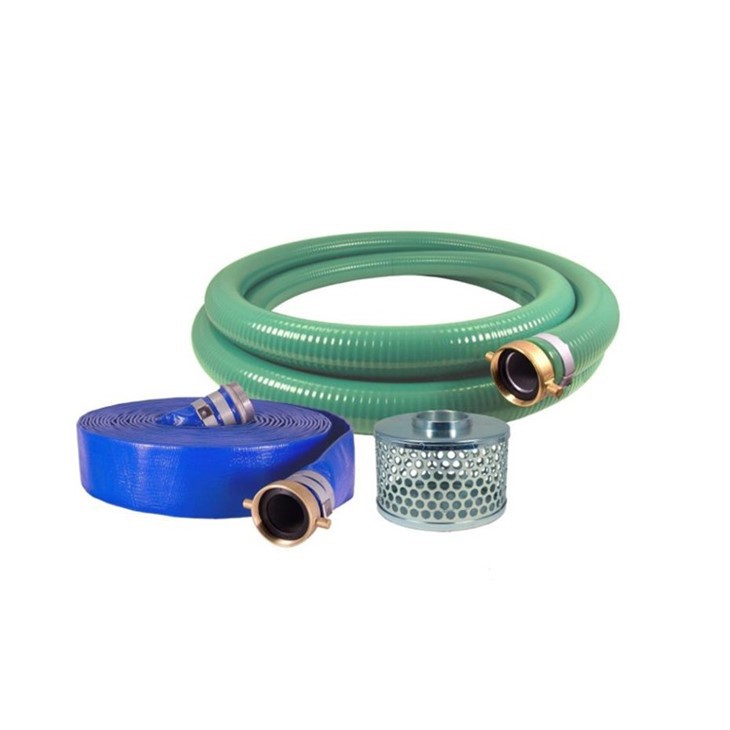

**4-Inch Suction Hose: Overview and Applications**
**Overview:**
The 4-inch suction hose is a robust conduit designed for versatile suction and delivery applications in multiple industries. Its key attributes and applications include:
**Advantages:**
1. **Durable Construction:** Crafted from high-quality materials like PVC or rubber compounds, offering durability and flexibility for suction and discharge tasks.
2. **Size and Length:** Measuring 4 inches in diameter, these hoses are available in various lengths, catering to diverse pumping setups and requirements.

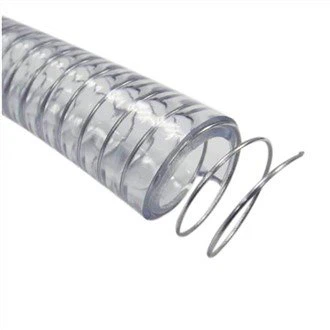

3. **Reinforcement:** Some hoses feature reinforcement layers such as rigid PVC helix or braided textiles, preventing collapsing while retaining flexibility.
4. **Versatility:** Primarily designed for suction and discharge of water, slurries, and mild chemicals, serving diverse industries including agriculture, construction, and mining.
5. **Resistance:** Exhibits resistance to abrasion, weathering, and various chemicals, ensuring prolonged service life and reliability in demanding conditions.
| Size Inch | ID MM | OD MM | WP BAR | BP BAR | Length m/Roll |
Weight g/M |
| 3/4“ | 19 | 25 | 8 | 24 | 30 | 280 |
| 1” | 25 | 31 | 8 | 24 | 30 | 350 |
| 1-1/4" | 32 | 40 | 8 | 24 | 30 | 500 |
| 1-1/2" | 38 | 48 | 8 | 24 | 30 | 750 |
| 2" | 50 | 58 | 7 | 21 | 30 | 920 |
| 2" | 50 | 60 | 7 | 21 | 30 | 1050 |
| 2-1/2" | 63 | 73 | 6 | 18 | 30 | 1300 |
| 3" | 75 | 85 | 5 | 15 | 30 | 1650 |
| 3" | 75 | 87 | 5 | 15 | 30 | 1900 |
| 4" | 100 | 112 | 5 | 15 | 30 | 2900 |
| 4" | 100 | 114 | 5 | 15 | 30 | 3200 |
| 4" | 100 | 116 | 6 | 18 | 30 | 3700 |
| 5" | 125 | 139 | 4 | 12 | 20 | 3600 |
| 5" | 125 | 141 | 4 | 12 | 20 | 4000 |
| 6" | 152 | 170 | 4 | 12 | 10 | 7200 |
| 6" | 152 | 174 | 5 | 15 | 10 | 8000 |
| 8" | 200 | 216 | 3 | 9 | 10 | 6700 |
**Applications:**
1. **Water Pumping:** Ideal for use with water pumps to draw water from a source or remove water from an area, commonly seen in construction sites, agricultural fields, or drainage operations.
2. **Agriculture:** Used for irrigation purposes, transferring water from reservoirs, ponds, or wells to fields for crop watering.
3. **Construction and Mining:** Suitable for dewatering operations, transferring fluids in construction sites, or handling slurries and wastewater in mining applications.
4. **Industrial Use:** Versatile enough to handle various liquids in industrial settings, such as mild chemicals, oils, and certain solvents.
The 4-inch suction hose is a sturdy and reliable solution, well-suited for various suction and discharge tasks across multiple industries due to its durability, flexibility, and adaptability to different environments and applications.
