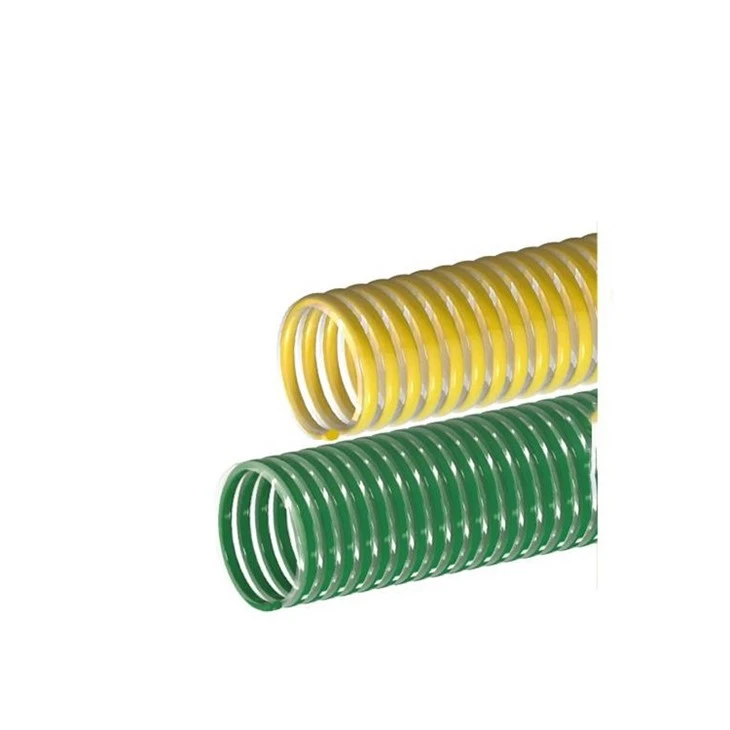

10 Inch Agricultural Suction Hose
Application: Water supply in garden and household; powder, water, oil delivery
Feature: Stretching resistant, larger water discharge, non-toxic
Raw material: SG-5 PVC powder
Working pressure: 3 bar~8 bar
Working temperature: -5℃~65℃
Product introduction:
Product name: 10 inch agricultural suction hose
Application: Water supply in garden and household; powder, water, oil delivery
Feature: Stretching resistant, larger water discharge, non-toxic
Raw material: SG-5 PVC powder
Working pressure: 3 bar~8 bar
Working temperature: -5℃~65℃
Product Description:
PVC SUCTION HOSE RIBBED TYPE
(1) Light weight, good flexibility, bright color, smooth smearing layer.
(2) Flat roll and easy for take back, convenient for moving and non limitation for length.
(3) Capable for keeping the flexibility and elasticity under the low-temperature water.
(4) Anti-hi pressure, corrosion resistance and ageing resistance.
(5) Applied to the lines of the auxiliaries for agricultural tools against the drought, project, miming, environment protection, industry and so on.
(6) No fissure phenomenon by ultraviolet rays and direct to rays of the sun
(7) Low cost economical
Application:
Widely used throughout industry in both positive and negative pressure applications, ideally for conveying and suction of water, oil, powder, granules in pump industries, constructions, mining industries, chemical factories and many other industry applications.
Features:
Excellent flexibility, crush and abrasion resistant, smooth tube for less friction loss, smooth cover allows easy dragging, weathering resistant, clear to have full visual flow of materials, corrosion resistant to light chemicals, various lengths available and can be supplied with different couplings and clamps.
Product parameters
|
Size (inch) |
Inner |
Thickness (mm) |
Work Pressure (bar) |
Burst Pressure (bar) |
Weight (kg/m) |
Length (m/roll) |
|
1 |
25 |
3 |
8 |
32 |
0.3 |
50 |
|
1-1/4 |
32 |
3 |
8 |
30 |
0.4 |
50 |
|
1-1/2 |
38 |
3 |
8 |
26 |
0.6 |
50 |
|
2 |
50 |
3.5 |
7 |
24 |
0.7 |
50 |
|
2-1/2 |
63 |
3.5 |
6 |
20 |
1.18 |
30 |
|
3 |
75 |
4 |
5 |
20 |
1.2 |
30 |
|
4 |
100 |
4 |
5 |
16 |
2 |
30 |
|
6 |
152 |
4 |
4 |
12 |
3.2 |
20 |
|
8 |
200 |
4 |
3 |
9 |
5 |
20 |
FAQ
Q: Can you produce the hose with my own brand ?
A: Yes, we have been offering OEM service for 10 years.
Q: Can you send us a sample to test quality before ordering ?
A: Yes, we can provide sample by free but the freight and other charges is payed by the customers.
Q: Could we pay a visit to your factory ?
A: Yes, you are always welcome to visit our factory.
Q: Can you help us do the custom clearance ?
A: Yes, we can. We can help you find a professional custom clearance company to do it.
Q: Can we get the goods without your company name to export ?
A: Yes, we can. We are allowed to use your designated agent’s name if you have one.
Q: Can you produce goods with special specification ?
A: First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible.
