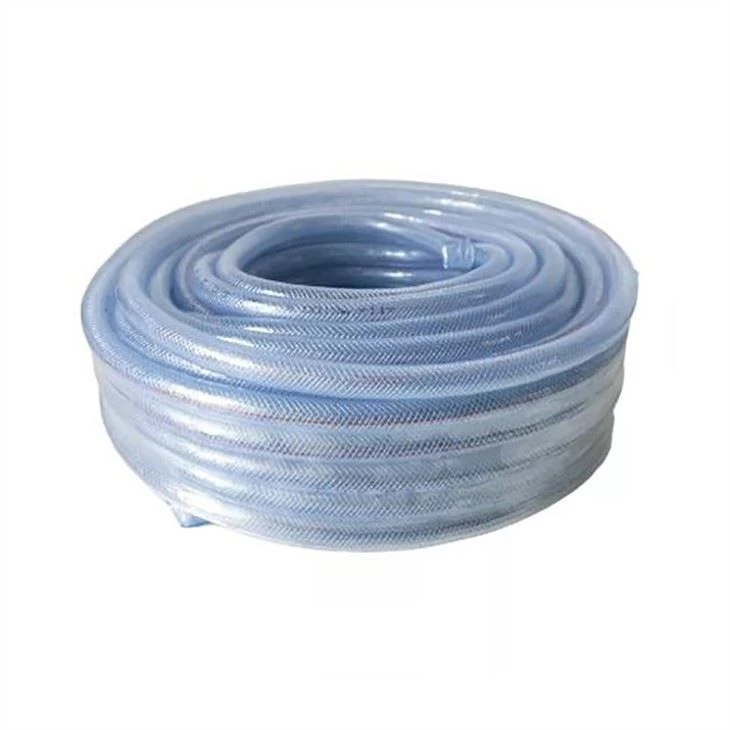

3 Inch Braid Poly Hose
Construction:
Tube and Cover: PVC
Reinforcement:high tensile polyester fibre
Application:
PVC fibre reinforced hose is used for conveying water,oil,gas under normal working condition in the factory,farm,ship,building and family. The hose used for foodstuffs is made of special food grade material,It can also be used for conveying milk,beverage,distilled liquor,beer, jam and other foods, It can be used as pvc shower hose too.
Characteristic:
Flexible,transparent,durable,non-toxic,without odor
Anti-erosion and anti-abrasion
Adding colorful symbol lines on the surface of the hose
Temperature:-10℃(-50℉) to 65℃(+150℉)
| Item Code | I.D | O.D | W.P. | B.P. | Length | Weight | Volume | |||
| inch | mm | mm | psi | bar | psi | bar | m/roll | kg/roll | m3/roll | |
| HK-06 | 1/4" | 6 | 10 | 145 | 10 | 435 | 30 | 100 | 6.60 | 0.015 |
| HK-08 | 5/16" | 8 | 12 | 145 | 10 | 435 | 30 | 100 | 8.30 | 0.019 |
| HK-09 | 3/8" | 9 | 13 | 131 | 9 | 392 | 27 | 100 | 9.10 | 0.025 |
| HK-10 | 13/32" | 10 | 14 | 116 | 8 | 348 | 24 | 100 | 9.90 | 0.029 |
| HK-12 | 1/2" | 12 | 16 | 102 | 7 | 305 | 21 | 100 | 11.60 | 0.038 |
| HK-13 | 1/2" | 13 | 17 | 87 | 6 | 261 | 18 | 100 | 16.10 | 0.045 |
| HK-14 | 35/64" | 14 | 19 | 102 | 7 | 305 | 21 | 100 | 17.10 | 0.052 |
| HK-15 | 5/8" | 15 | 19 | 87 | 6 | 261 | 18 | 50 | 7.05 | 0.030 |
| HK-16 | 5/8" | 16 | 20 | 73 | 5 | 218 | 15 | 50 | 7.45 | 0.030 |
| HK-18 | 45/64" | 18 | 24 | 87 | 6 | 261 | 18 | 50 | 13.05 | 0.035 |
| HK-19 | 3/4" | 19 | 23 | 58 | 4 | 174 | 12 | 50 | 8.70 | 0.043 |
| HK-20 | 25/32" | 20 | 25 | 87 | 6 | 261 | 18 | 50 | 11.65 | 0.046 |
| HK-22 | 7/8" | 22 | 27 | 73 | 5 | 218 | 15 | 50 | 12.70 | 0.056 |
| HK-25 | 1" | 25 | 30 | 58 | 4 | 174 | 12 | 50 | 14.25 | 0.068 |
| HK-32 | 1-1/4" | 32 | 39 | 58 | 4 | 174 | 12 | 40 | 20.60 | 0.119 |
| HK-38 | 1-1/2" | 38 | 45 | 58 | 4 | 174 | 12 | 40 | 24.08 | 0.151 |
| HK-45 | 1-3/4" | 45 | 55 | 58 | 4 | 174 | 12 | 40 | 41.44 | 0.217 |
| HK-50 | 2" | 50 | 58 | 44 | 3 | 131 | 9 | 40 | 35.80 | 0.198 |
| HK-64 | 2-1/2" | 64 | 78 | 58 | 4 | 174 | 12 | 40 | 82.40 | 0.304 |
| HK-75 | 3" | 75 | 90 | 58 | 4 | 174 | 12 | 40 | 102.60 | 0.350 |
USAGE
Widely used in drawing and conveying water, oil and powder in factories, agriculture, enginnering, foodstuffs and sanitation lines.
FEATURES
light, transparent, with small bending radius. It has good adaptability to hard weather conditions and minus pressure.
