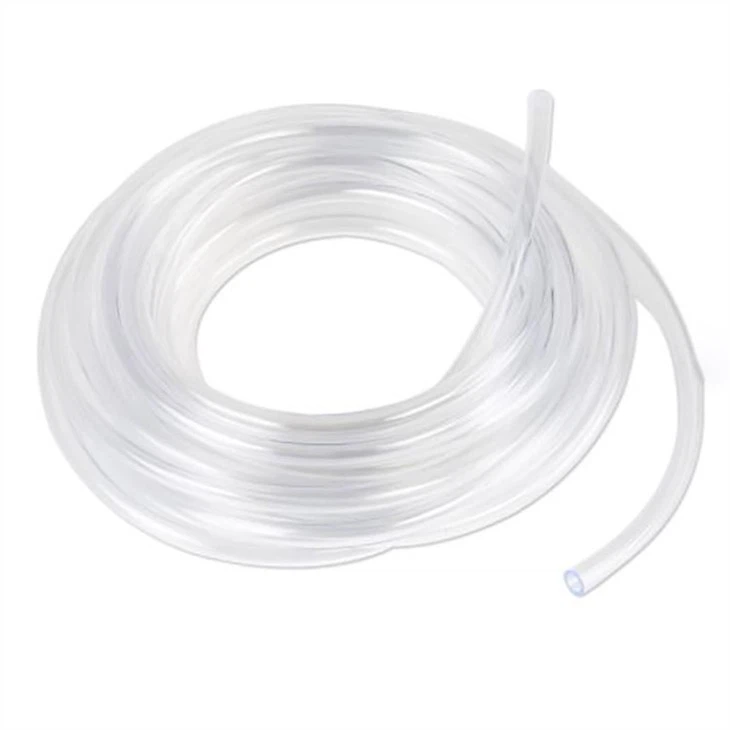

5mm Clear Vinyl Tubing
Inside Diameter: .25 or 1/4"
Outside Diameter: .375" or 3/8"
Wall Thickness: 1/16"
Product introduction
Name: 5mm clear vinyl tubing
Tubing Material: Polymerizing Vinyl Chloride (PVC)
Tubing Color: Clear
Inside Diameter: .25 or 1/4"
Outside Diameter: .375" or 3/8"
Wall Thickness: 1/16"
Temp Range: -43°F - +165°F
Hardness, Shore A: 60
Tensile Strength: 2450 PS
Product Description
Clear PVC Plastic Tube Vinyl Tubing Flexible Water Discharge Hose PVC Pipe.
Flexible PVC tubing offers a wide range of chemical and corrosion resistance, excellent abrasion and wear resistance, rubber-like flexibility,visual contact with the flow (clear pvc tubing and hose styles), and outstanding flow characteristics.
These include general industrial, food, pharmaceutical and medical, chemicals, fuels, oils, and mechanical applications including protective coverings and insulation sleeving.
Advantage
1.Mechanical liquid delivery Hose
PVC Clear Hose,It is used in the suction and discharge of liquid,gas,oil and dust in agricultural water pump machinery,oil depot,petrochemical equipment,industry,engineering mining,food manufacturing and other fields.Most work environments can replace rubber hoses.
2.Fish tank and aquarium water change hose
Using the siphon principle to change the water in the fish tank at home,you only need a transparent and soft plastic hose,because the plastic hose is tasteless,non-toxic,highly transparent,and easy to bend,which can freely change the water to the fish tank.
Product parameters
Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
inch | mm | inch | mm | kg/m | bar | psi | m | ft |
1/8 | 3 | 0.196 | 5 | 0.017 | 5 | 75 | 100 | 300 |
1/6 | 4 | 0.236 | 6 | 0.02 | 5 | 75 | 100 | 300 |
1/5 | 5 | 0.314 | 8 | 0.04 | 5 | 75 | 100 | 300 |
1/4 | 6 | 0.354 | 9 | 0.047 | 5 | 75 | 100 | 300 |
5/16 | 8 | 0.433 | 11 | 0.059 | 5 | 75 | 100 | 300 |
3/8 | 10 | 0.511 | 13 | 0.071 | 5 | 75 | 100 | 300 |
1/2 | 12 | 0.590 | 15 | 0.08 | 3 | 45 | 100 | 300 |
5/8 | 15 | 0.708 | 18 | 0.10 | 3 | 45 | 50 | 150 |
3/4 | 19 | 0.866 | 22 | 0.13 | 3 | 45 | 50 | 150 |
1 | 25 | 1.181 | 30 | 0.28 | 3 | 45 | 50 | 150 |
1-1/4 | 32 | 1.496 | 38 | 0.43 | 3 | 45 | 30 | 90 |
1-1/2 | 38 | 1.732 | 44 | 0.52 | 3 | 45 | 30 | 90 |
2 | 50 | 2.283 | 58 | 0.90 | 3 | 45 | 30 | 90 |
FAQ
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final Inspection before shipment.
Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: Could you calculate the shipping cost for me?
A: Of course, we honored to do that! Before freight, please well let us know which seaport or airport near your place.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Can I place sample order first?
A: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
