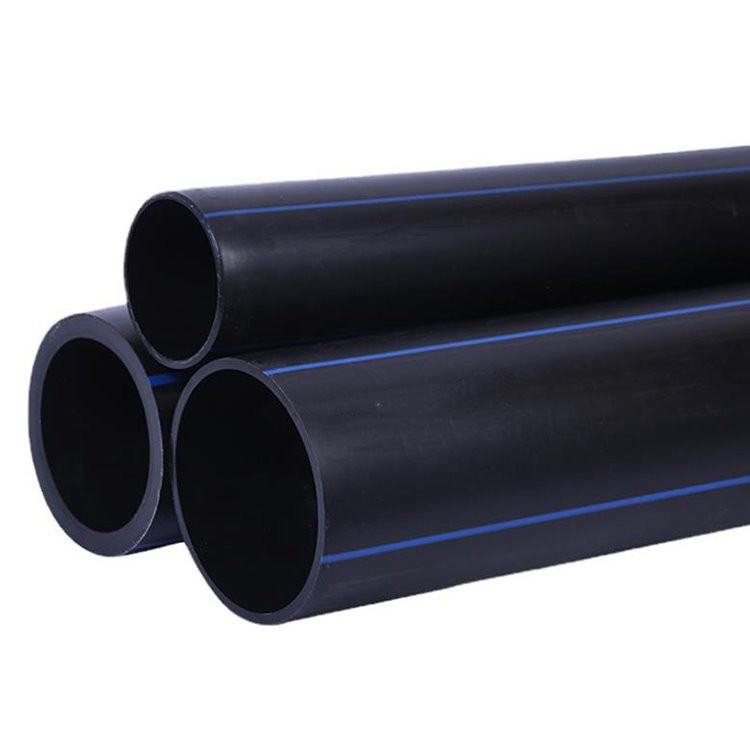

250mm Drainage Plastic Pipe
Material: High density HDPE PE100
Color : Black or as client request
Size: 20mm-1200mm
Pressure: SDR41/0,32Mpa-SDR9/2.0Mpa
Service: OEM,customized
Application: Water supply ,cooling system,firefighting,mining,irrigation,sewer,drainage
Product Description:
HDPE pipe introduce
PE pipe inner wall is smooth, and does not change with the use of time, small friction resistance, energy saving, pressure loss is about 30% smaller than steel pipe, can choose a smaller diameter than steel pipe. Good hygienic performance, no additives, no possibility of pollution of drinking water, ISO standard grading polyethylene material is 0 (the lowest level), do not moldy material, compared with some other commonly used plastic materials, polyethylene mildew resistance is much higher, long-term use also does not scale.
Features
Piping made from polyethylene is a cost effective solution for a broad range of piping problems in municipal, industrial, marine, mining, landfill, duct and agricultural applications. It has been tested and proven effective for above ground, surface, buried, sliplined, floating, and sub-sur face marine applications.
HDPE pipes are used in varied industries like Agriculture, Chemical, Industrial, Sewage and Drainage, Sprinkler Irrigation, Industrial Effluents and House services connection works as well.
Product parameters
Pressure | PN0.6MPa SDR 26 | PN0.8MPa SDR 21 | PN1.0MPa SDR 17 | PN1.25MPa SDR 13.6 | PN1.6MPa SDR 11 |
OD | Thickness | Thickness | Thickness | Thickness | Thickness |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
20 | 2.3 | ||||
25 | 2.3 | ||||
32 | 3 | ||||
40 | 3.7 | ||||
50 | 4.6 | ||||
63 | 3.7 | 4.7 | 5.8 | ||
75 | 4.5 | 5.6 | 6.8 | ||
90 | 4.3 | 5.4 | 6.7 | 8.2 | |
110 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
125 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
315 | 12.1 | 15 | 18.7 | 23.2 | 28.6 |
355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
630 | 24.1 | 30 | 37.4 | 46.3 | 57.2 |
Application: Water supply pipe can be used for general purpose pressure water transmission and drinking water transmission. His surface color indicates that his use is mainly for water-related pipes (water supply pipes), gas pipes in yellow, fire-fighting pipes in red and mining pipes. There are mainly municipal buried water supply, building water supply (drainage), farmland irrigation, waterscape engineering and so on. In water supply pipeline engineering, PE water supply pipe will eventually replace UPVC pipe. | ![]() |
FAQ
Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Can you send us a sample to test quality before ordering ?
A: Yes, we can provide sample by free.
Q: Can we get the goods without your company name to export ?
A: Yes, we can. We are allowed to use your designated agent's name if you have one.
Q: Can you produce goods with special specification ?
A: First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
