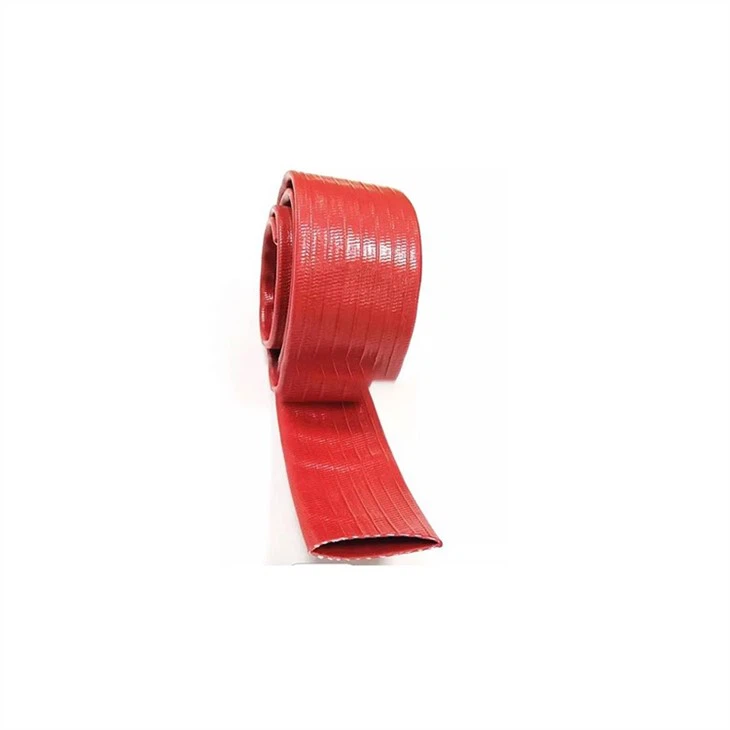

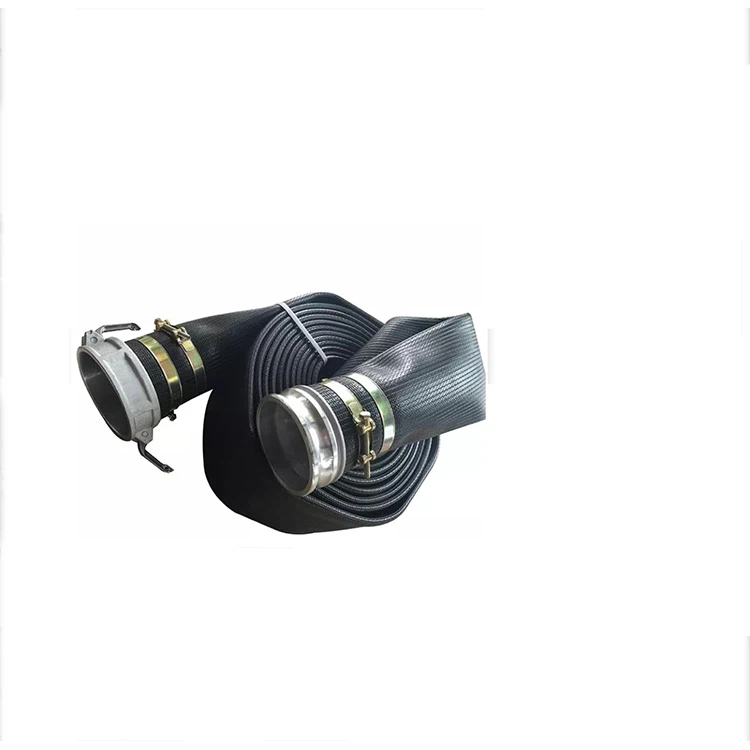

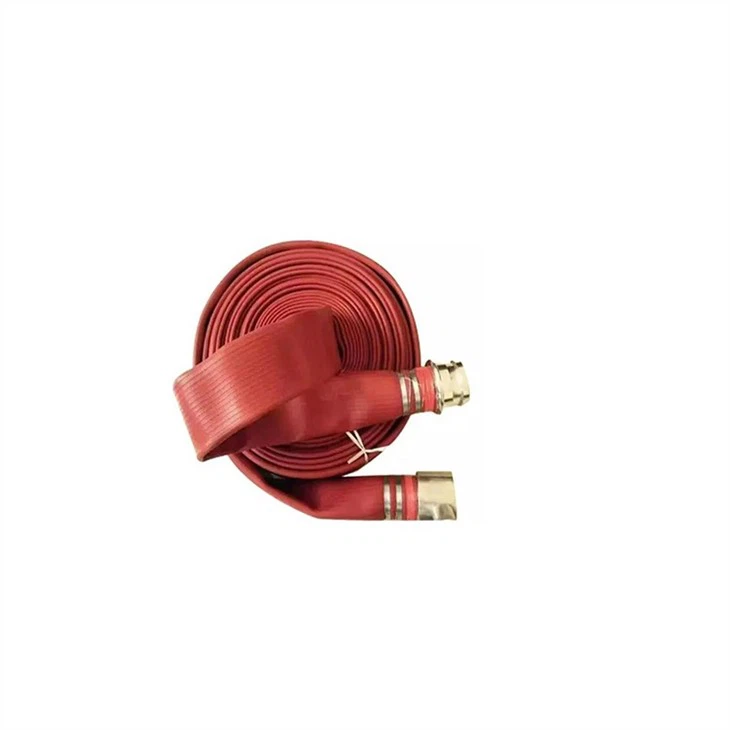

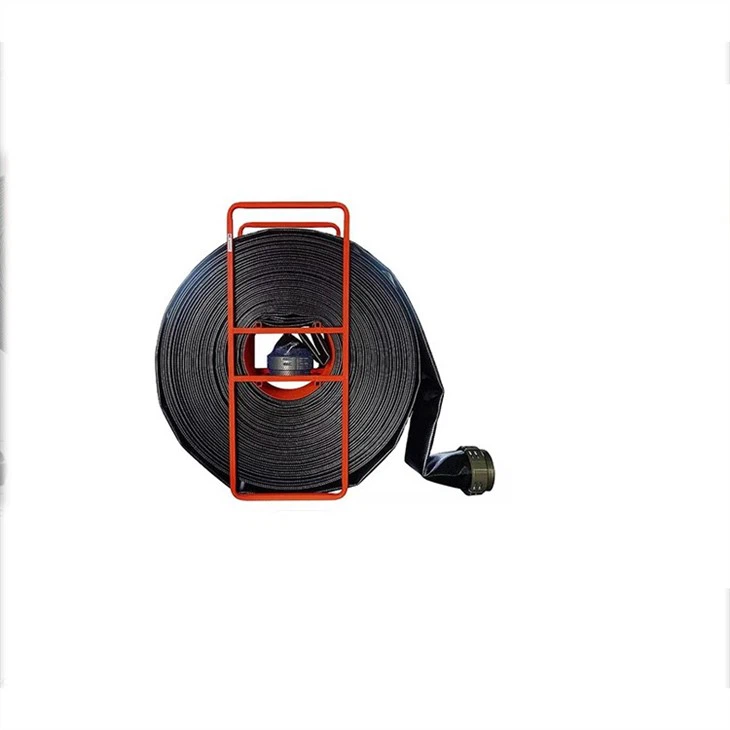

Nbr Layflat Hose

Product introduction:

Product name: nbr layflat hose

Application: Irrigation

Material: Polyester/NBR

Color: Black / Customized

Lining: Nitrile rubber

Length: Up to 200m

Size: 102mm - 200mm

Working Pressure: 10-21bar

Burst Pressure: 30-63bar



Product Description:

Specifications of LAYFLAT HOSE

Construction:

Circular polyester weave extruded internally and externally with NBR-PVC.

Hose shall be made from 100% high tenacity synthetic yarn circular woven and completely, protected and locked-in by tough highly resistant synthetic nitrile rubber, forming a single homogenous construction without the use of glues or adhesives of any type.

Water suction and discharge hoses are designed to vacuum (suction) or pump (discharge) water from one place to another. Some of these hoses can only be used for suction applications, some can be used just for discharge applications, and some can be used for both. Hoses that can be used only for suction applications or for both suction and discharge applications typically have rigid reinforcement to prevent them from collapsing during suction. Hoses that can only be used for discharge applications tend to lay flat when not in use.



Characteristic:

Very soft

Not deformed

Abrasion resistant

Oil mist resistant

Strong toughness

Durable and anti-aging



Feature

∎ Great durability mainly given by the reinforcement and high-density material.

∎ Extra thickness in order to prevent bursting due to pressure in heavy industry.

∎ Manufactured by one step extrusion technology, higher working pressure, longer working life, different from plastic coated

layflat hose.

∎ Layflat Hose easily rolls up, stores and reuses, as it has a very durable construction.



Product parameters

Size	Inner Diameter	2Bar	3Bar	4Bar	6Bar	8Bar	10Bar
Inch	mm	Kg/m	Kg/m	Kg/m	Kg/m	Kg/m	Kg/m
1”	25.4±1.3	0.12	0.13	0.14	0.155	0.17	0.185
1-1/4”	31.8±1.5	0.14	0.15	0.175	0.195	0.21	0.23
1-1/2”	38.1±1.5	0.18	0.2	0.24	0.27	0.3	0.32
2”	50.3±2.0	0.24	0.3	0.35	0.375	0.39	0.42
2-1/2”	63.5±2.3	0.32	0.38	.45	0.48	0.52	0.55
3”	76.2±2.3	0.38	0.47	0.57	0.63	0.69
4”	101.6±2.5	0.52	0.58	0.72	0.8	0.9
5”	121±2.8	0.75	0.85	0.95	1.1	1.2
6”	152.4±3.0	0.9	1.05	1.2	1.4	2.1
8”	203.2±3.5	1.45	1.55	1.7	1.9	2.6
10”	254.1±4.0	2.3	2.5	2.75
12”	304.8±4.5	3.0	3.6	4



FAQ

Q: Can you produce the hose with my own brand ?

A: Yes, we have been offering OEM service for 10 years.



Q: Can you send us a sample to test quality before ordering ?

A: Yes, we can provide sample by free but the freight and other charges is payed by the customers.



Q: Could we pay a visit to your factory ?

A: Yes, you are always welcome to visit our factory.



Q: Can you help us do the custom clearance ?

A: Yes, we can. We can help you find a professional custom clearance company to do it.



Q: Can we get the goods without your company name to export ?

A: Yes, we can. We are allowed to use your designated agent’s name if you have one.



Q: Can you produce goods with special specification ?

A: First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible.
