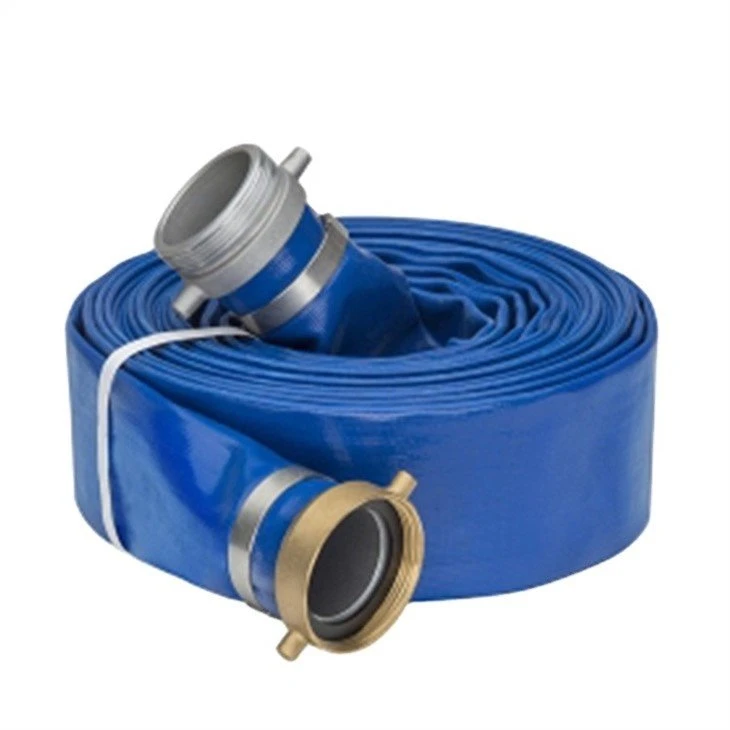

3 Inch Pvc Flat Hose
Product Description:
Construction
PVC layflat hose is constructed with 3 plies of polyester yarns, one latitudinal ply and two longitudinal plies. Both tube and cover are extruded simultaneously to maximize bonding of the hose.
Features:
Strong and durable, ageing proof; Never be out of layer; Resistance to chemicals and weather; Easy to store, handle and take.
Light weight, good flexibility, bright color, smooth layer
Roll flat and easy for take back, convenient for moving and none limiting for length.
Keeping the flexibility and elasticity in the low-temperature water, woring temperature:-5°c--65 °c
Anti-high pressure, corrosion resistance and ageing resistance.
Applied to the lines of the auxiliaries for agricultural tools against the drought, project, mining, environment protection, industry and so on.
Advantage
1. Ultralight, approximately half wight compare with standard rubber lining hose.
2. Highly resistant to ozone, abrasion, oil and grease.
3. Outstanding on low temperature performance.
4. High tear strength, high transparence
5. The linder is amazingl thin and smooth, thus maximum flow and low down the loss on friction.
6. Very easy roll, no need dry after use.
Product parameters
Inch Size | Metric Size | 0.2MPa | 0.3MPa | 0.4MPa | 0.6MPa | 0.8MPa | 1.0MPa |
Inch | I.D.(mm) | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m |
1'' | 25.4±1.3 | 0.125 | 0.13 | 0.14 | 0.155 | 0.17 | 0.185 |
1-1/4'' | 31.8±1.3 | 0.145 | 0.155 | 0.175 | 0.195 | 0.21 | 0.23 |
1-1/2'' | 38.1±1.5 | 0.185 | 0.2 | 0.24 | 0.27 | 0.3 | 0.32 |
2'' | 50.3±2.0 | 0.25 | 0.3 | 0.35 | 0.375 | 0.39 | 0.42 |
2-1/2'' | 63.5±2.3 | 0.32 | 0.38 | 0.45 | 0.48 | 0.52 | 0.55 |
3'' | 76.2±2.3 | 0.38 | 0.47 | 0.57 | 0.63 | 0.69 | 0.78 |
4'' | 101.6±2.5 | 0.52 | 0.58 | 0.72 | 0.8 | 0.9 | 1.1 |
5'' | 127±2.8 | 0.75 | 0.85 | 0.95 | 1.1 | 1.2 | |
6'' | 152.4±3.0 | 0.9 | 1.05 | 1.2 | 1.4 | 1.8 | |
8'' | 203.2±3.5 | 1.45 | 1.55 | 1.7 | 1.9 | 2.4 | |
10'' | 254±4 | 2.3 | 2.5 | ||||
12'' | 304.8±4.5 | 3.2 | 3.5 |
Applications:
It used advanced technology and fiber reinforced layer made by one-step procedure through braided. This product has the characteristics of anti-fracture, resisted high pressure and small expansivity. Increased the radial fibers, improved the tensile strength.
1. This kind of hose has the advantages of anti-stretch, anti-fracture, resisted high pressure and small expansion rate.
2. It is light, flexible, bright colors, anti-erosion, anti-aging, abrasion resistance, and anti-ultraviolet.
3. No odor, environmentally friendly products.
4. It has the good weather resistance and suitable for conveying liquids.
FAQ
Q: Are you factory or trading company?
A: We are a professional manufacturer with factory located in Weifang City, Shandong Province.
Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality .
Q: Can you do the design for us?
A: Yes,just tell us your ideas and we will help to carry out your ideas into perfect products.
Q: Can you do the design for us?
A: Yes, We supply full OEM and ODM service for our customers.
Q: When can I get the quotation?
A: Within 24 hours after we get your inquiry, you can also call us or email to us.So we will regard your inquiry priority.
