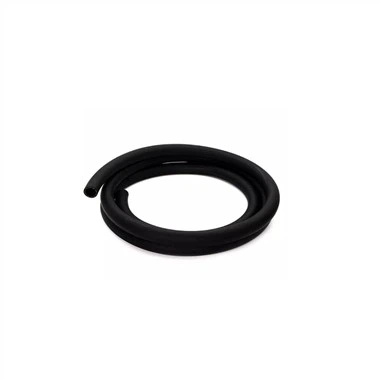

Air Compressor Hose
Structure:
1. Inner rubber layer: black, smooth, wear-resistant, NBR synthetic rubber.
2. Reinforcement: High strength polyester fiber thread.
3. Protective coating: wear resistance, anti-aging and anti-static NBR or EPDM synthetic rubber.
Feature:
- High tensile polyester renforced
- Work under high pressure 300 psi
- Strong peeling adhesion between fibre and pvc
light, flexible, non-kinking, non-twisting
- UV and ozone resistant, weather resistant
- Can be used for jackhammer hose
Application:
Extensively applied in large air pneumatic equipment art.
From raw material formula to production process, Haikuo has continuously developed and improved over the years. Air rubber hose is widely used in many application fields, including large air compressor, large pneumatic equipment used in coal mine and road opening, all of which are inseparable from air rubber hose. Haikuo has been deeply engaged in this field for many years, and has designed the special performance of products for the application characteristics of industrial field. For more than ten years, Haikuo's products have been updated from generation to generation. Each iteration makes the product performance better.
| Item Code | I.D | O.D. | W.P. | B.P. | Bending radius | Length | ||
| mm | mm | psi | bar | psi | bar | mm | m/roll | |
| PUBH05 | 5 | 8 | 290 | 20 | 870 | 60 | 20 | 100 |
| PUBH65 | 6.5 | 10 | 218 | 15 | 653 | 45 | 25 | 100 |
| PUBH08 | 8 | 12 | 218 | 15 | 653 | 45 | 35 | 100 |
| PUBH95 | 9.5 | 14.5 | 218 | 15 | 653 | 45 | 45 | 100 |
| PUBH12 | 12 | 16 | 218 | 15 | 653 | 45 | 60 | 100 |
| PUBH13 | 13 | 18 | 218 | 15 | 653 | 45 | 70 | 100 |
| PUBH19 | 19 | 25 | 218 | 15 | 653 | 45 | 80 | 100 |
FAQ
Q: Can you produce the hose with my own brand ?
A: Yes, we have been offering OEM service for 10 years.
Q: Can you send us a sample to test quality before ordering ?
A: Yes, we can provide sample by free but the freight and other charges is payed by the customers.
Q: Could we pay a visit to your factory ?
A: Yes, you are always welcome to visit our factory.
Q: Can you help us do the custom clearance ?
A: Yes, we can. We can help you find a professional custom clearance company to do it.
Q: Can we get the goods without your company name to export ?
A: Yes, we can. We are allowed to use your designated agent's name if you have one.
Q: Can you produce goods with special specification ?
A: First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible.
