An6 Braided Stainless Steel Fuel Hose
an6 braided stainless steel fuel hose-1
an6 braided stainless steel fuel hose-2

An6 Braided Stainless Steel Fuel Hose

Name: an6 braided stainless steel fuel hose Model Number: AN4 AN6 AN8 AN10 AN12 AN16 Processing Service: Cutting Product name: AN4 AN6 AN8 AN10 AN12 Black Nylon Fuel Hose Silver Stainless Steel Wire Braided Oil Cooling Rubber Hose for Auto Motorcycle car Material: NBR+SS+Nylon braided cover Size: an4 an6 an8 an10 an12 an16 Cover: Black Nylon or Stainless Steel Braided Application: Oil cooler system Length: 1m 3m 5m 6.1m or customized Fitting: Available Standard: SAE J1532

Send Inquiry

Product Introduction

Application:Universal Brake Lines, Clutch Lines, Fuel Systems, Turbo oil feed Hose, Coolant Systems, Oil Pressure Systems, Gauge

lines & Power Steering.

Compatibility: Brake Fluids, Unleaded Petrol, Methanol, Water, & Oil. Ideal for use with Unleaded fuel

Features:

High pressure resistance

Exceptionally lightweight, flexible, and durable.

Specially designed to compatible with any fuel (including methanol and nitromethane), oil, coolant, brake, transmission, clutch, power steering fluids and nitrous oxide.

The PTFE core tube makes this hose excellently more durable and longer lasting than reguler stainless steel braided hose with NBR rubber inner tube.

3 FOOT Stainless STEEL Braided E85 AN6 AN-6 PTFE inner Oil Line Fuel Hose

Braided smooth bore hose comprises a straight PTFE tube liner and single or double stainless steel outer braid, and is the basic PTFE hose design being used successfully in many automotive, fluid handling, chemical transfer, paint, pharmaceutical,

food&beverage processing, cosmetics and general-purpose applications.

The hose core is made from virgin 100% PTFE resin without any pigment or additive.

The wire braiding is produced from AISI 304 or 316 stainless steel wire.

Anti-static(carbon) version of all hoses are available, consult us for further information.

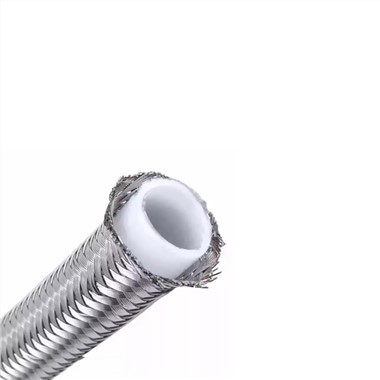

Stainless steel braided PTFE hose
	BJR0725-3-M	AN3	9/64" 3.56mm	1/4" 6.35mm
	BJR0725-4-M	AN4	3/16" 4.83mm	19/64" 7.62mm
	BJR0725-6-M	AN6	21/64" 8.13mm	27/64" 10.92mm
	BJR0725-8-M	AN8	27/64" 10.67mm	35/64" 13.72mm
	BJR0725-10-M	AN10	33/64" 12.95mm	5/8" 16mm
	BJR0725-12-M	AN12	41/64" 16.26mm	49/64" 19.3mm
	BJR0725-16-M	AN16	7/8" 22.22mm	1-1/32" 26.16mm
	BJR0725-20-M	AN20	1-1/8" 28.57mm	1-9/32" 32.77mm
Black stainless steel braided PTFE hose
	BJR0725B-3-M	AN3	9/64" 3.56mm	1/4" 6.35mm
	BJR0725B-4-M	AN4	3/16" 4.83mm	19/64" 7.62mm
	BJR0725B-6-M	AN6	21/64" 8.13mm	27/64" 10.92mm
	BJR0725B-8-M	AN8	27/64" 10.67mm	35/64" 13.72mm
	BJR0725B-10-M	AN10	33/64" 12.95mm	5/8" 16mm
	BJR0725B-12-M	AN12	41/64" 16.26mm	49/64" 19.3mm
