Flexible Oil Hydraulic Hose

1-wire braid vs 2-wire braid hydraulic hose

More layers of wire braid can be applied for higher pressure, and we have the 1-wire
braid hydraulic hose and 2-wire braid hydraulic hose.

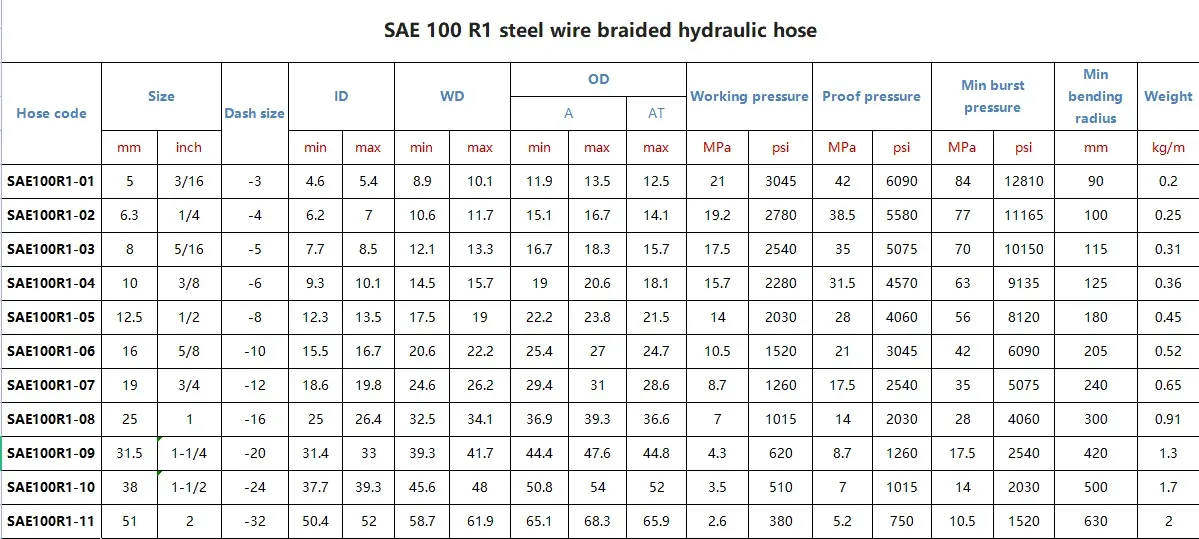

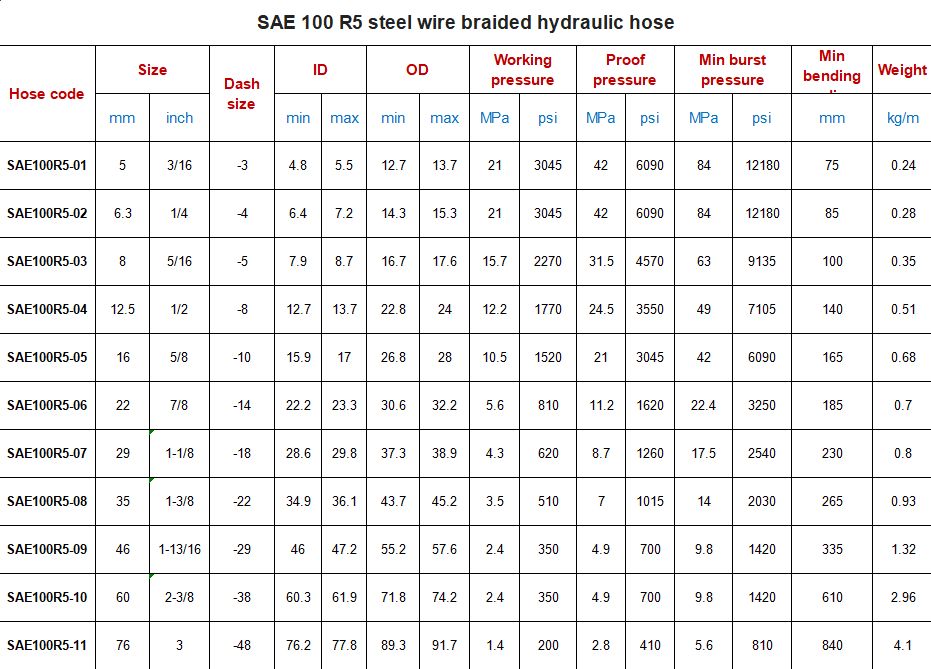

* 1-wire braided hydraulic hose: DIN EN857 1SC, SAE 100R17, SAE 100R1A/DIN EN853 1ST, SAE 100R1AT/ DIN EN853 1SN, SAE 100R2A /
DIN EN853 2ST, SAE 100R5
* 2-wire braided hydraulic hose: DIN EN857 2SC, SAE 100R16, SAE 100R2AT / DIN EN853 2SN

You will not able to see how many wire braids are inside the hydraulic hose until you cut the hydraulic hose, and then you can see the wire braided from the cutting cross-section after cutting the hydraulic hose. And the wire braided layer is the reinforcement of the hydraulic hose pipe, and you can see clearly the crisscross braided patterns. The wire braided reinforcement can protect the hydraulic hose piple well.

"Flexible oil hydraulic hoses" are pipe devices specifically designed to transport hydraulic oil (hydraulic fluid) in hydraulic systems. They have many advantages that make them one of the key components commonly used in hydraulic systems. The following are the advantages of flexible hydraulic hoses:

1. **Flexibility:** Flexible hydraulic hoses have good bending and flexibility and can adapt to different positions and dynamic movements in the system without affecting its performance. This flexibility allows the hose to be used in complex environments and to absorb vibration and shock.

2. **High Pressure Resistance:** These hoses are designed to withstand high pressures and are capable of transferring high pressure hydraulic oil in hydraulic systems. Its design structure and material selection enable it to stably withstand high pressures within the system without leakage or damage.

3. **Abrasion resistance:** In order to be able to be used for a long time in various industrial environments, flexible hydraulic hoses usually have good wear resistance. Its outer covering material resists friction and wear, extending the service life of the hose.

4. **Chemical Stability:** The materials of these hoses are usually selected with stability to various hydraulic oils and chemicals in mind to ensure that material corrosion or damage will not occur when used in different fluid environments.

5. **Temperature adaptability:** Flexible hydraulic hoses are typically capable of operating over a wide range of temperatures, including extremely high and low temperatures. This temperature adaptability allows the hose to maintain consistent performance under a variety of operating conditions.

6. **Wide Applications:** These hoses are widely used in many industries such as construction, agriculture, mining, manufacturing and automotive industries, etc. Their versatility makes them an important component of a variety of hydraulic systems.

In general, the advantage of flexible hydraulic hoses is that they can maintain stable hydraulic transmission performance under high pressure and harsh working environments, and at the same time have good wear resistance, chemical stability and temperature adaptability, making them an ideal choice for hydraulic systems. an indispensable component.
