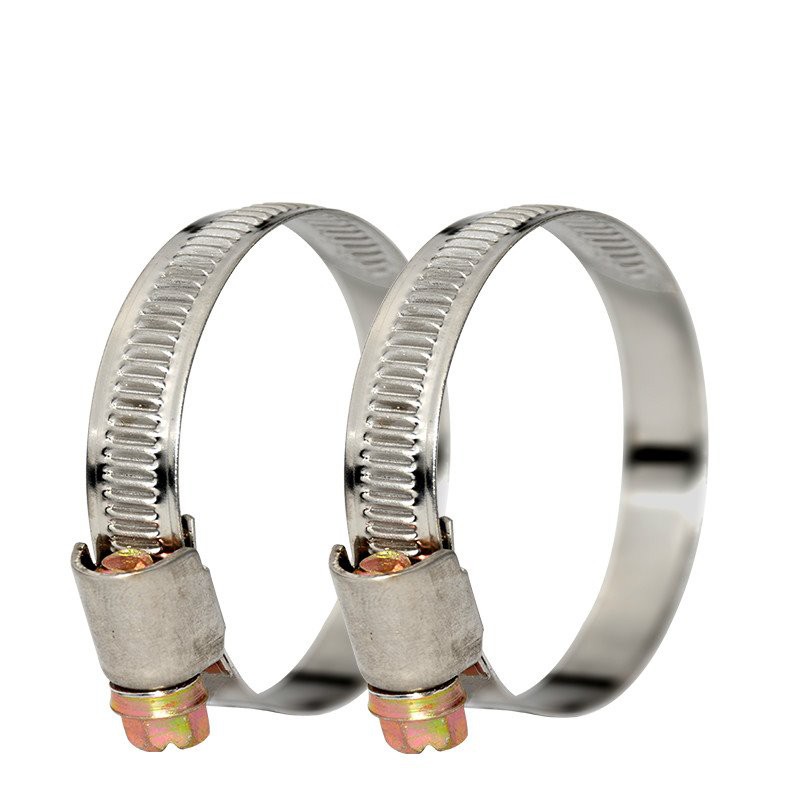

Steel Pvc Hose Clamp
Material: SS 304 stainless steel
Color: Stainless steel color
Product features: Easy installation Corrosion and rust prevention
Product use: Widely used in wire and cable, hose, chemical industry, shipbuilding and other industries
Product Description:
1.Heavy duty hose clamp:is used for pipe fixing on various surfaces and support structures.Heavy duty hose clamp is suitable for fixed pipeline with oil, water, gas medium in metallurgy, petroleum, chemicals, vehicles, ships, power hydraulic systems. Heavy duty hose clamp is under stamping, sheet metal, galvanized surface treatment ,have a unique advantage of damping, silencers, sound absorption, abrasion etc..
2. Quick release hose clamps: mainly used in fast conversion, such as sealing of the air duct, dust channel interface. meets quickly tied needs to enable work very efficient.
3.American hose clamps: with band thread through-hole, and teeth of the screw fitted in, they have more powerful locking. and accurate Occlusal. Also,american hose clamps can be used in non-circular objects, they can bundle the square columnar objects, such as flue, electric vehicle batteries,etc.
4.Spring hose clamps: spiral spring design prevents the occurrence of leakage when temperature changes, and have a self-compensation function (constant pressure). Widely used in truck air intake, cooling ventilation systems. spring hoops made of high quality stainless steel and thin band material, provide uniform sealing pressure with special bending process ,forming a completely reliable seal. they are dedicated to the environment of vibration and large diameters.
5. German hose clamps: the unique side pressing design, and non-perforated design can effectively prevent the soft surface of the silicone tube and hose from damage.
6.Rubber screw hose clamps: with good flexibility, tensile strength, flame retardant, waterproof, anti-aging, anti-static, high temperature resistance,corrosion resistance, wear-resistant, anti-UV performance.
Product parameters
Product Code | Size in Inch | Size in millimeter |
KG47 | 1.85" | 47mm-57mm |
KG54 | 2.0" | 54mm-62mm |
KG60 | 2.25" | 60mm-68mm |
KG67 | 2.5" | 67mm-75mm |
KG73 | 2.75" | 73mm-81mm |
KG79 | 3.0" | 79mm-87mm |
KG92 | 3.5" | 92mm-100mm |
KG105 | 4.0" | 105mm-113mm |
Application: to auto pipe , motor pipe , water pipe , cooling pipe , gas pipeect,etc.
FAQ
Q: What is your MOQ?
A: As customer's request.
Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately. More specify the information that you provided more faster and easier you will get the quotation.
Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.
Q: Can I get free samples?
A: Yes, we can provide you the free samples.
Q: Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
Q: Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
