Silicone Hose For Cars
Material: Silicone Rubber
Experience: 10years` experience in rubber parts producing and mold development
Working Temper perature: -40~120 centigrade
Diameter Range: 7mm~120mm
Wall Thickness: 2mm ~ 6mm
Reinforcement: 1~4 layers of polyester or customized
Size Tolerance: ± 0.5mm

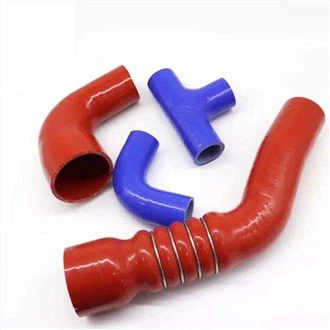

complete model of the Shape: Straight, elbow, hump or any other special type
Producing Technic: moulding and handwork
Usage: Applicable to the transportation of water, gas so as to cold the auto
Product Description
Our siliccone hose are widely applied to auto performance , ATV, heavy duty truck ,coach(Bus),Marine,Industry , construction,especially to the system bellow:
1.Turbo charger system: high tempreture turbo charger application
2.CAC( charger air cooler system); code side and hot side
3.coolant system; hose for radiator upper and lower (inlet and outlet )
Features:
1. It is resistant to high and low temperature impact, and has the characteristics of insulation, oil resistance, aging resistance, etc.
2. No need to use primer for bonding with various substrates, high tear resistance, high insulation, wear resistance, flame retardant, anti-aging, environmental protection
3. Silicone tube also has the characteristics of oxygen resistance, ozone resistance, light resistance, weak acid and alkali resistance, excellent electrical insulation, arc resistance, stable performance, beautiful appearance, etc.
4. Excellent electrical insulation performance
Silicone Hose For Cars performance:
1. Made by winding process, high density, no "trachoma";
2. Excellent aging resistance, with oxygen resistance, ozone resistance, light resistance, weather resistance, weak acid and alkali resistance, high and low temperature resistance, excellent electrical insulation, arc resistance, good physiological inertia and physiological stability;
3. The three-layer mesh is strengthened, and it will not be hardened, cracked, or burst when used under high temperature for a long time.
Silicone Hose For Cars performance:
1. Made by winding process, high density, no "trachoma";
2. Excellent aging resistance, with oxygen resistance, ozone resistance, light resistance, weather resistance, weak acid and alkali resistance, high and low temperature resistance, excellent electrical insulation, arc resistance, good physiological inertia and physiological stability;
3. The three-layer mesh is strengthened, and it will not be hardened, cracked, or burst when used under high temperature for a long time.
About Silicone Hose For Cars
1. Excellent quality: the product is made of silicone material, the surface is smooth without burrs, clean, not fading, and without damage, and the shape and diameter can be customized for various special-shaped silicone tubes.
2. Strong pressure-bearing capacity: Rig wire weaving technology is added in the product, which increases the pressure-bearing capacity and is tough to use. It is widely used for conveying water and various acid and alkaline liquids. Commonly used in automotive industry machinery and equipment.
Product Parameters
Product name | ID/mm | ID/Inch |
straight meter silicone hose | 6mm-152mm | 0.25"-6" |
straight reducer hose | 6.5mm-127mm | 0.25"-5" |
45 degree elbow silicone hose | 6.5mm-152mm | 0.25"-6" |
45 degree reducer elbow silicone hose | 6.5mm-152mm | 0.25"-6" |
45 degree elbow silicone hose | 51mm-102mm | 2"-4" |
90 degree elbow silicone hose | 6.5mm-152mm | 0.25"-6" |
90 degree reducer elbow silicone hose | 6.5mm-152mm | 0.25"-6" |
135 degree elbow silicone hose | 16mm-89mm | 0.63"-3.5" |
180 degree elbow silicone hose | 16mm-89mm | 0.63"-3.5" |
T shape silicone hose | 38mm-76mm | 1.5"-3" |
Hump | 51mm-102mm | 2"-4" |
Reducing hump | 51mm-102mm | 2"-4" |
one hump silicone hose | 25mm-114mm | 1"-4.5" |
two hump silicone hose | 89mm-102mm | 3.5"-4" |
one hump reducer silicone hose | 51mm-89mm | 2"-3.5" |
bellow hose with 1 ring | 51mm-102mm | 2"-4" |
bellow hose with 3 ring | 57mm-152mm | 2"-6" |
bellow hose with 4 ring | 63.5mm-152mm | 2"-6" |
bellow hose with 5 ring | 63.5mm-152mm | 2"-6" |
bellow hose with 6 ring | 63.5mm-152mm | 2"-6" |
silicone vacuum hose | 3mm-12mm | 1/8-1/ 2inch |
silicone heater hose | 8mm-32mm | 5/16-1 1/4 inch |
If you have other silicone hoses for automobiles, you can contact us and we will customize it for you. | ||
Product Details
Application: Silicone hose for cars (also known as engine hoses, vehicle hoses, auto hoses, and car hoses) carry fluids to engines, radiators, and other vehicle components to fuel them, lubricate them, cool them, and keep them from malfunctioning.
Our Services
1. Size/hardness/color can be customized.
2. Hardness range :50A ~80A, density range :1.30-1.4g/mm
3. Surface: high resistance to low pressure, high and low temperature, and UV.
4. Product certification: Made of 100% silicone, after strict testing, in line with ROSH, REACH, UL and other certifications.
FAQ
Q: Are You Trading Company Or Factory?
A: We Are Factory.
Q: What's the MOQ?
A: Usually, Our MOQ Is 500m. Depends on Different Models. Or If Some Items Are in Stock, less Quantity Can Be Accepted, too. Pls Feel Free to Contact Us for Checking.
Q: What's the Delivery Time?
A: Usually, It's 15 days to 20 days. Please Confirm With us before Order.
Q: How Can I get a sample to check your quality?
A: After Price confirmation,you can require for sample to check our quality.Universal hose sample is free,but freight has to be afford by buyer
Q: Can you produce customized goods ?
A: Yes, the size, diameter and length can be produced as per client's requirements.
Q: Can you print words on products as per client's requirement?
A: Yes, make label according to your exact requirement
Q: Do you accept OEM?
A: Yes, OEM is available.
Q: How can you guarantee the quality or any warranty?
A: If have any quality problems during use, all the products can be returned or according to consumer's requests.
Any More Questions Please Feel Free to Contact Us. Thank You.
