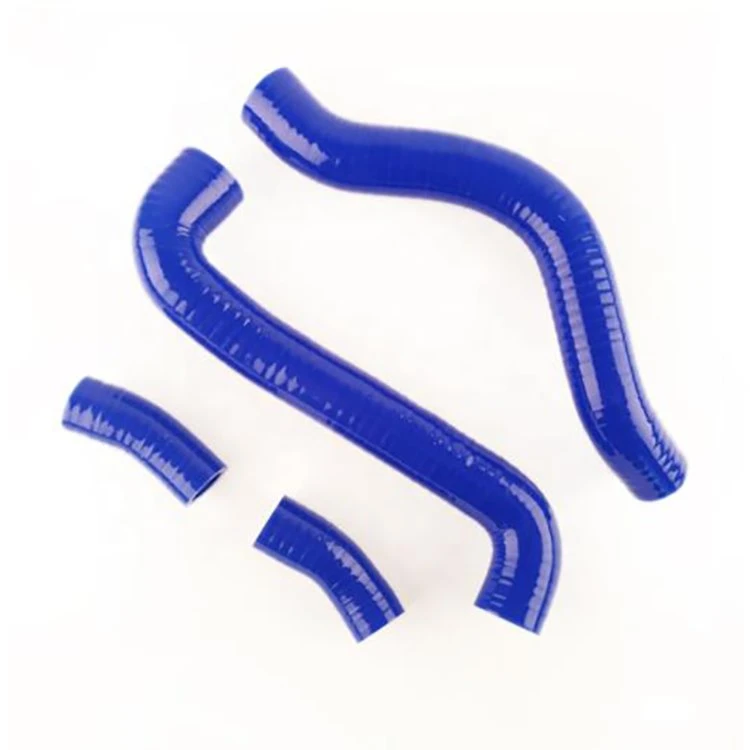

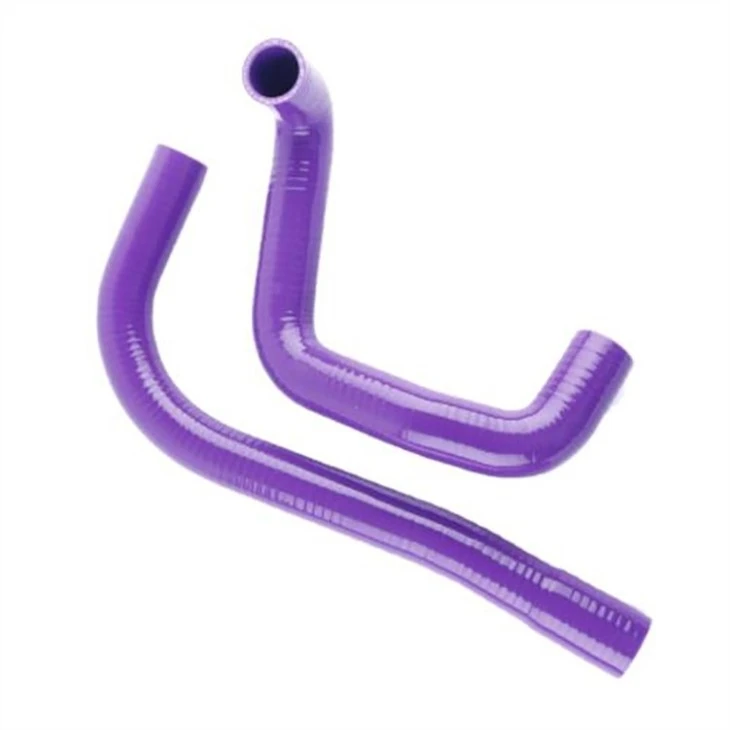

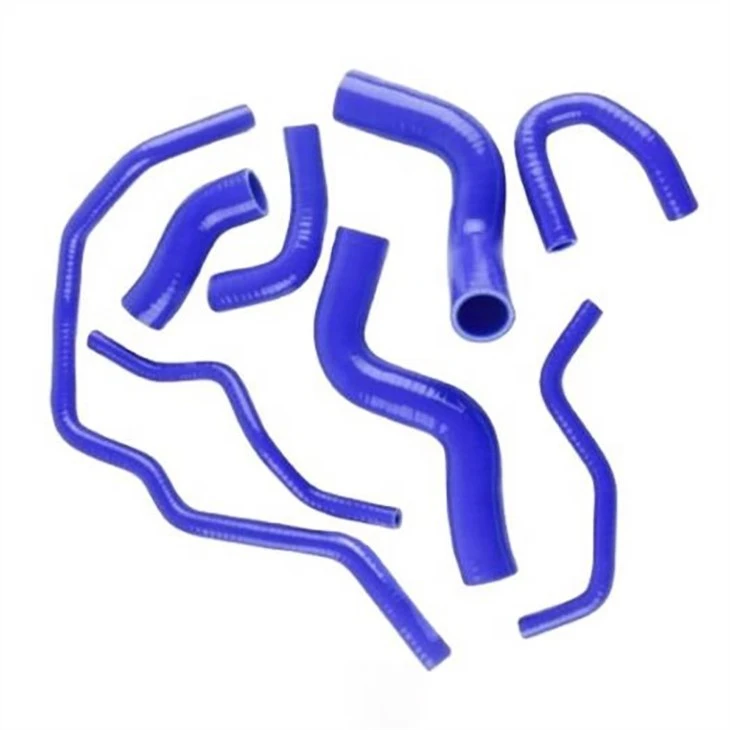

High Temp Coolant Hose

Product introduction

Product Item: high temp coolant hose

Material: Silicone

Color: Blue, Red, Green, Yellow, Black, etc

Thickness: 5mm

Layer: 4 ply

Temperature: -40℃ to +240℃

Pressure: 0.3mpa-1mpa

Feature: High quality, Competitive price



Product Description

1. DURABLE MATERIAL: Made of premium industrial grade high temp reinforced silicone. Polyester reinforcement and heavy wall design gives it the ability to handle extreme pressure. Ultra flexible & Excellent tensile strength.

2. TEMPERATURE RANGE: Min temperature: -40℃/-40 ℉. Max temperature: 230℃/446 ℉

3. FEATURES: High temp reinforced silicone heater hose meet and exceed SAEJ20 industry standards, ideal for heavy duty pressure connections and provides excellent resistance for high temperature applications.

4. WIDELY APPLICATION:

- Extruded silicone hose specially recommended for engine cooling and heating system applications.

- It is especially recommended for use in water and ethylene glycol-based engine coolant system applications.

- For the automotive industry, the most common standard for coolant system hoses is SAE J20, which classifies them according to the type of service.

- SAE 20R3 type of hose is used in connecting heater systems and other components in the coolant circulating systems of ground vehicles(for example in heavy duty truck, marine and bus engines).



Product parameters

Product name	ID/mm	ID/Inch
straight meter silicone hose	6mm-152mm	0.25"-6"
straight reducer hose	6.5mm-127mm	0.25"-5"
45 degree elbow silicone hose	6.5mm-152mm	0.25"-6"
45 degree reducer elbow silicone hose	6.5mm-152mm	0.25"-6"
45 degree elbow silicone hose	51mm-102mm	2"-4"
90 degree elbow silicone hose	6.5mm-152mm	0.25"-6"
90 degree reducer elbow silicone hose	6.5mm-152mm	0.25"-6"
135 degree elbow silicone hose	16mm-89mm	0.63"-3.5"
180 degree elbow silicone hose	16mm-89mm	0.63"-3.5"
T shape silicone hose	38mm-76mm	1.5"-3"
Hump	51mm-102mm	2"-4"
Reducing hump	51mm-102mm	2"-4"
one hump silicone hose	25mm-114mm	1"-4.5"
two hump silicone hose	89mm-102mm	3.5"-4"
one hump reducer silicone hose	51mm-89mm	2"-3.5"
bellow hose with 1 ring	51mm-102mm	2"-4"
bellow hose with 3 ring	57mm-152mm	2"-6"
bellow hose with 4 ring	63.5mm-152mm	2"-6"
bellow hose with 5 ring	63.5mm-152mm	2"-6"
bellow hose with 6 ring	63.5mm-152mm	2"-6"
silicone vacuum hose	3mm-12mm	1/8-1/ 2inch
silicone heater hose	8mm-32mm	5/16-1 1/4 inch
If you have other silicone hoses for automobiles, you can contact us and we will customize it for you.



FAQ

Q: How can we guarantee quality?

A: Always a pre-production sample before mass production;Always final Inspection before shipment.



Q: What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.



Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.



Q: Could you calculate the shipping cost for me?

A: Of course, we honored to do that! Before freight, please well let us know which seaport or airport near your place.



Q: Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q: Can I place sample order first?

A: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
