Wire Reinforced Plastic Tubing
Thickness: 0.4-0.6mm or as required
Length: 10/20 m etc or as required
Reinforcement: steel wire helix.
Product introduction
Name: wire reinforced plastic tubing
Specification 25-406 mm
Thickness: 0.4-0.6mm or as required
Length: 10/20 m etc or as required
Reinforcement: steel wire helix
Material: PVC,High performance PVC
Product Description

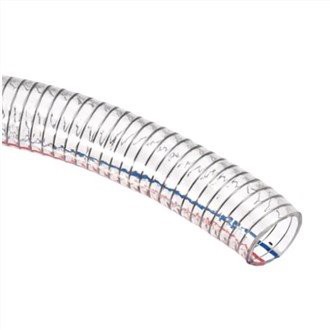

PVC Steel Wire Spring Hose is made from 100% pure PVC compound with galvanized steel wire reinforcement to make it negative pressure resistance. This is a new type of reinforced PVC hose, an ideal substitute for other rubber.
PVC Steel Wire Hose is chemical, ozone, atmospheric and flame resistant as well as self extinguishing.
The applications of this hose include all vacuum lines, food and beverage dispensing.
Its one piece construction is the result of a unique process that embeds the spring wire reinforcement within the walls of the hose, resulting in a homogenous mass.
There are no separate layers or laminated plies. As a result chemicals and gases cannot attack the metal spring wire and the hose retains its strong anti-collapsible features under both high pressure and low vacuum applications.
This hose has the added advantage of being transparent so that the user can see what is going on inside it.
Product parameters
SIZE | M/ROLL | MAX.W.P. | MAX.B.P. | WEIGHT | ||
INCH | I.D. | O.D. (MM) | BAR AT 23℃ | G/M | ||
| (MM) | ||||||
1/4" | 6 | 11 | 100 | 8 | 24 | 115 |
5/16" | 8 | 14 | 100 | 8 | 24 | 150 |
3/8" | 9 | 15 | 100 | 8 | 24 | 170 |
3/8" | 10 | 16 | 100 | 8 | 24 | 200 |
1/2" | 12 | 18 | 100 | 8 | 24 | 220 |
5/8" | 15 | 22 | 50 | 6 | 18 | 300 |
3/4" | 19 | 26 | 50 | 6 | 18 | 360 |
3/4" | 20 | 26 | 50 | 6 | 18 | 320 |
7/8" | 22 | 27 | 50 | 6 | 18 | 300 |
1" | 25 | 33 | 50 | 5 | 16 | 540 |
1-1/4" | 32 | 40 | 50 | 5 | 16 | 700 |
1-1/2" | 38 | 48 | 50 | 5 | 15 | 1000 |
1-3/4" | 45 | 56 | 50 | 5 | 15 | 1300 |
1-7/8" | 48 | 59 | 50 | 5 | 15 | 1400 |
2" | 50 | 62 | 50 | 5 | 15 | 1600 |
2-5/16" | 58 | 69 | 40 | 4 | 12 | 1600 |
2-1/2" | 64 | 78 | 30 | 4 | 12 | 2500 |
3" | 76 | 90 | 30 | 4 | 12 | 3000 |
3-1/2" | 90 | 108 | 20 | 4 | 12 | 4500 |
4" | 102 | 116 | 20 | 4 | 12 | 4300 |
FAQ
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final Inspection before shipment.
Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: Could you calculate the shipping cost for me?
A: Of course, we honored to do that! Before freight, please well let us know which seaport or airport near your place.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Can I place sample order first?
A: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
